  • The Junkers F 13 was the world's first all-metal transport aircraft, developed in Germany at the end of World War I. It was an advanced cantilever-wing monoplane, with enclosed accommodation for four passengers. 322 planes of the type were manufactured, an exceptionally large number for a commercial airliner of the era, and were operated all over the globe. It was in production for thirteen years and in commercial service for more than thirty.
    Design and development
    The F 13 was a very advanced aircraft when built, an aerodynamically clean all-metal low-wing cantilever (without external bracing) monoplane. Even later in the 1920s, it and other Junkers types were unusual as unbraced monoplanes in a biplane age, with only Fokker's designs of comparable modernity. It was the world's first all-metal passenger aircraft and Junkers' first commercial aircraft.

    The designation letter F stood for Flugzeug, aircraft; it was the first Junkers aeroplane to use this system. Earlier Junkers notation labelled it J 13. Russian-built aircraft used the designation Ju 13.

    Like all Junkers duralumin-structured designs, from the 1918 J 7 to the 1932 Ju 46, (some 35 models), it used an aluminium alloy (duralumin) structure entirely covered with Junkers' characteristic corrugated and stressed duralumin skin. Internally, the wing was built up on nine circular cross-section duralumin spars with transverse bracing. All control surfaces were horn balanced.

    Behind the single engine was a semi-enclosed cockpit for the crew, roofed but without side glazing. There was an enclosed and heated cabin for four passengers with windows and doors in the fuselage sides. Passenger seats were fitted with seat belts, unusual for the time. The F 13 used a fixed conventional split landing gear with a rear skid, though some variants landed on floats or on skis.
    183 In August 1919
    The F 13 first flew on 25 June 1919, powered by a 127 kW (170 hp) Mercedes D IIIa inline upright water-cooled engine. The first production machines had a wing of greater span and area and had the more powerful 140 kW (185 hp) BMW IIIa upright inline water-cooled motor.

    Many variants were built using Mercedes, BMW, Junkers, and Armstrong Siddeley Puma liquid-cooled inline engines, and Gnome-Rhône Jupiter and Pratt & Whitney Hornet air-cooled radial engines. The variants were mostly distinguished by a two letter code, the first letter signifying the airframe and the second the engine. Junkers L5-engined variants all had the second letter -e, so type -fe was the long fuselage -f airframe with a L5 engine.
    Operational history
    Any manufacturer of civil aircraft immediately after World War I was faced with competition from the very large numbers of surplus warplanes that might be cheaply converted – for example, the DH.9C. German manufacturers had further problems with the restrictions imposed by the Inter-Allied Aeronautical Commission of Control, which banned the production of warplanes and of any aircraft in the period of 1921–2. Junkers picked up orders abroad in 1919 in Austria, Poland and the USA and, in the following years with SCADTA (Colombia) and the United States Post Office Department. John Larsen Aircraft in the USA purchased a production licence, their machines being designated JL-6. In 1922 there were sales in England, France Italy and Japan.

    In Bolivia, LAB's first airplane was a Junkers F-13; first flight took off from Cochabamba on September 23, 1925.

    Junkers set up its own airline – Junkers Luftverkehr AG in 1921 – to encourage the acquisition of the F 13 by German airlines which was flying 60 of them by 1923. They also established a branch of this airline in Iran. Other marketing techniques were used, providing F 13s on cheap leases and free loans, with such effect that some 16 operators across Europe were flying them. When Junkers Luftverkehr merged into Luft Hansa in 1926, 9.5 million miles had been flown by them. Luft Hansa itself bought 55 aircraft and in 1928 were using them on 43 domestic routes. Even in 1937, their F 13s were flying over 50 flights per week on four routes. They were finally withdrawn in 1938.

    Most of the F 13s produced before completion of the marque in 1932 were built at Junkers German base at Dessau. During the difficult 1921–3 period production was transferred to Junkers plants at Danzig and Reval. In 1922–3, Hugo Junkers signed a contract with the Soviet Union to produce the aircraft in a Soviet factory at Fili near Moscow which became known as "Plant no. 22". Some of these aircraft served Soviet airlines and some the Red Army.

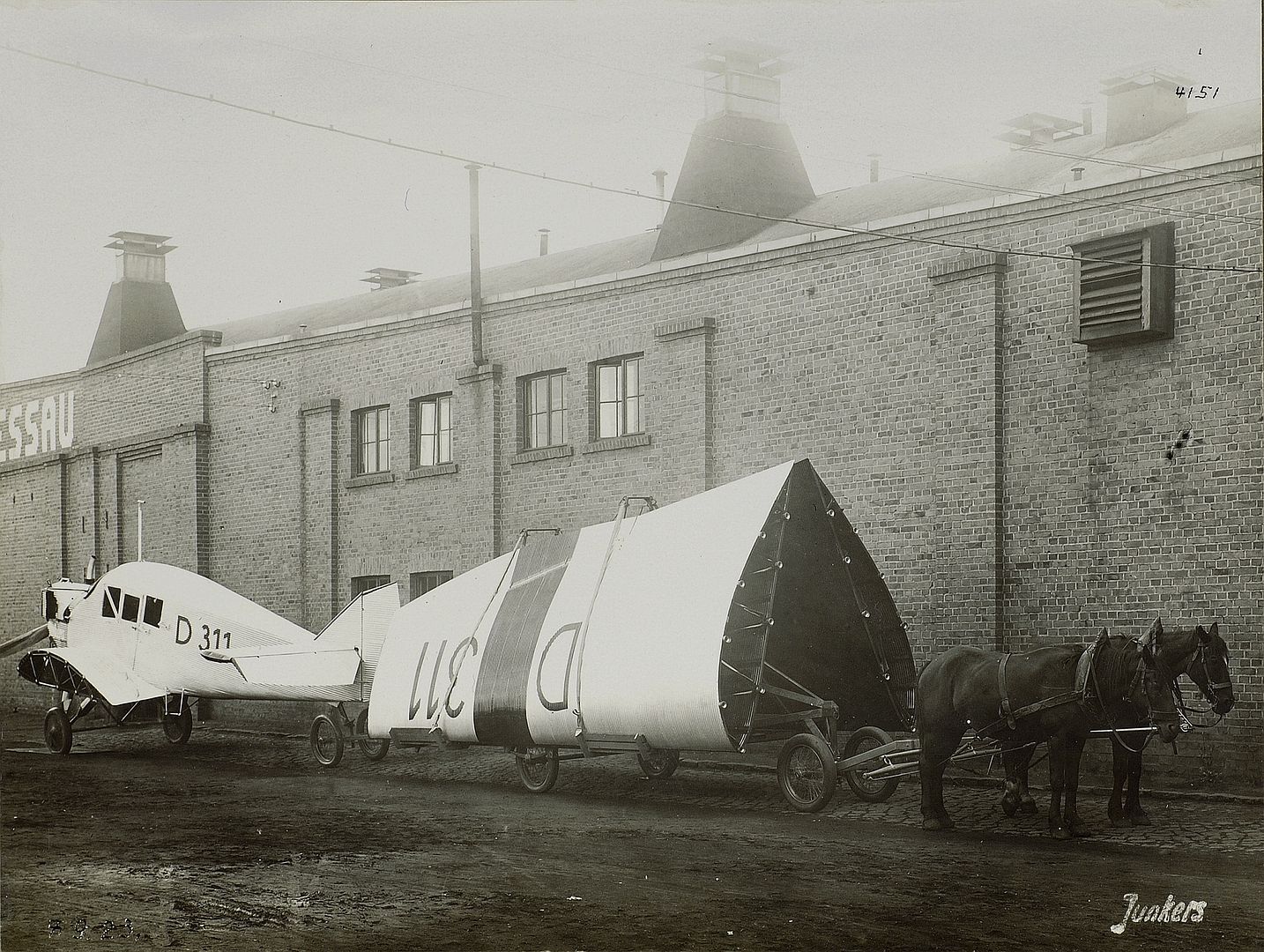

    F13 Dessau D 311
    There were some other military users. The Colombian Air Force used the F 13 (and the related W.33, W.34 and K.43) as bombers in the Colombia–Peru War in 1932–3. The Republic of China flew F 13s converted into scout bombers until the January 28 Incident in 1932, when they were destroyed by the Japanese along with the Shanghai Aircraft Factory. The Turkish Flying Forces flew a few.

    A feature that made the F 13 popular internationally was the ease with which its landing gear could be converted to floats. During the formative years of commercial aviation, bodies of water such as rivers, lakes, seas and oceans were more abundant than landing strips and civil airports in many parts of the world, so seaplanes were commonplace and even, in some places, more useful than regular aircraft. Aside from the obvious addition of floats, little modification was needed for this conversion; however, the different configuration could cause issues with directional control, and so some models had their rudder extended to compensate for this.

    From their introduction in 1919, commercial F 13s were in service for more than thirty years; the last commercial F 13 was retired in Brazil in 1951.
    Back in Production 2009-2019
    A German-Swiss project to build a reconstruction of the F 13 was launched in 2009; the first flight was in September 2016. The reconstruction is equipped with radio and a transponder, and uses a 1930s Pratt & Whitney R-985 Wasp Junior engine, but is otherwise as close as possible to the original. Additional reconstructions are to be sold for $2.5 million apiece.

    Junkers Flugzeugwerke (SD303) has resurrected the Junkers F 13 as an all-new airplane to honor Hugo Junkers’ achievements. The company completed the aircraft in 2016 and it is at EBACE commemorating the type's maiden flight 100 years ago. The model is available for purchase, and three others like it are currently under construction. Work was in progress on the second and third aircraft during 2019, with airframe number two's maiden flight planned for early that summer
    Variants
    F 13
    first prototype, smaller wings (span 14.47 m/47 ft 5.75 in, area 38.9 m² /419 ft²) and less powerful engine 127 kW (170 hp) Mercedes D IIIa inline) than production models.
    F 13a
    first production aircraft with 140 kW (185 hp) BMW IIIa engine.
    F 13ba, ca, da, fa
    all with the 149 kW (200 hp) Junkers L2 upright inline water-cooled engine and a series of structural modifications. The fa variant was about 1 m (3 ft) longer.
    F 13be, ce, de, fe
    as the above but all with 230 kW (310 hp) Junkers L5 upright inline water-cooled engines.
    F 13dle, fle, ge, he, ke
    variants with the Junkers L5 above.
    F 13bi, ci, di, fi,
    as ca to fa but all with the 186 kW (250 hp) BMW IV engine.
    F 13co, fo, ko
    with the 230 kW (310 hp) BMW Va engine.
    Junkers-Larsen JL-6
    American version of the F 13 built by Junkers-Larsen. Eight built.
    Junkers-Larsen JL-12
    Ground-attack derivative of the Junkers-Larsen JL-6, with 300 kW (400 hp) Liberty L-12 engine, armored, and armed with a downward-pointing battery of 30 Thompson submachine guns.
    Rimowa Junkers F 13
    Modern replica first flown 15 September 2016. With the approval of the Junkers heirs, Rimowa Junkers was renamed Junkers Flugzeugwerke AG, and moved to Altenrhein. Their models have modern features, like more and better instruments, while the outward appearance is the one of a Junkers-Larsen JL-6.

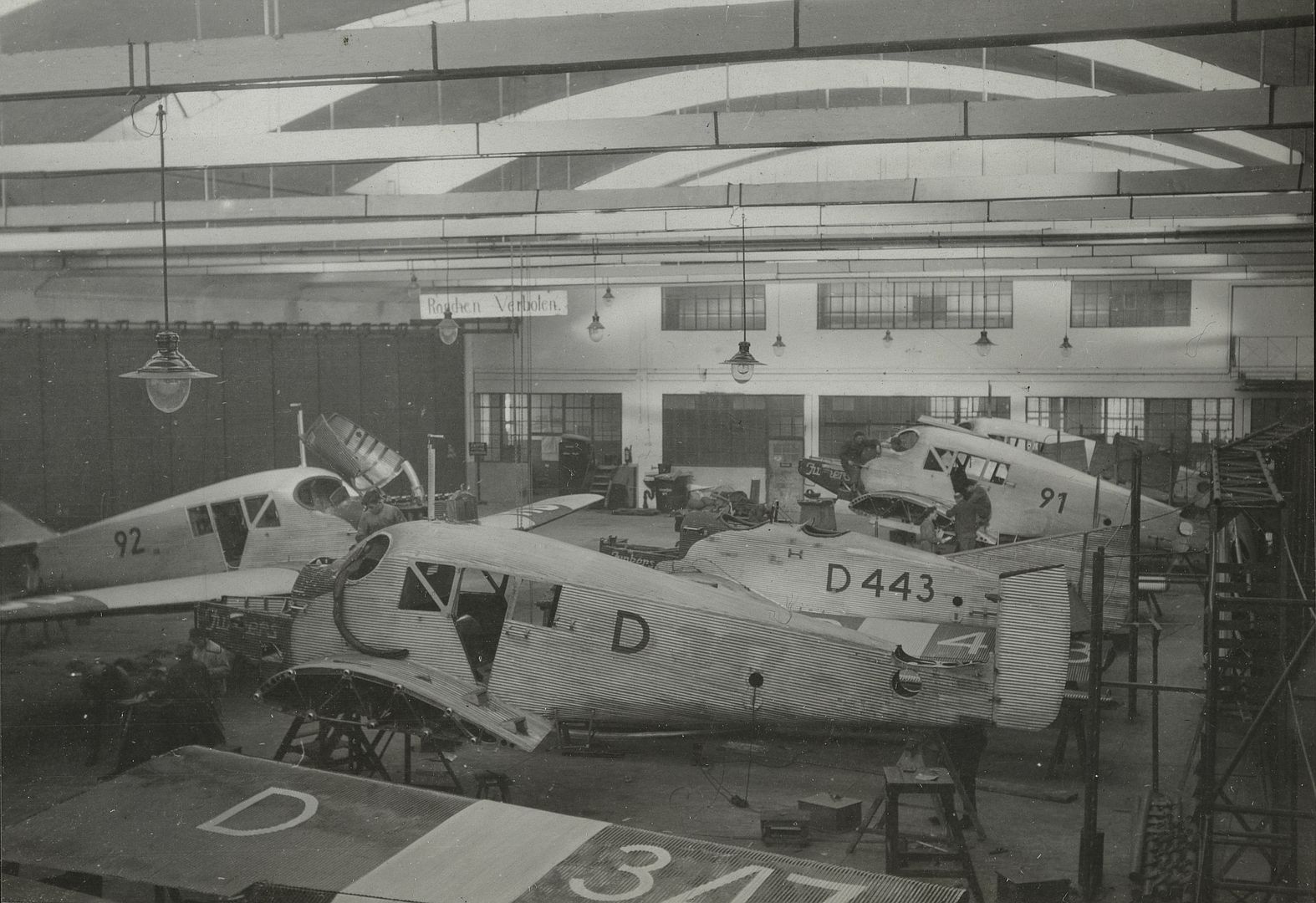

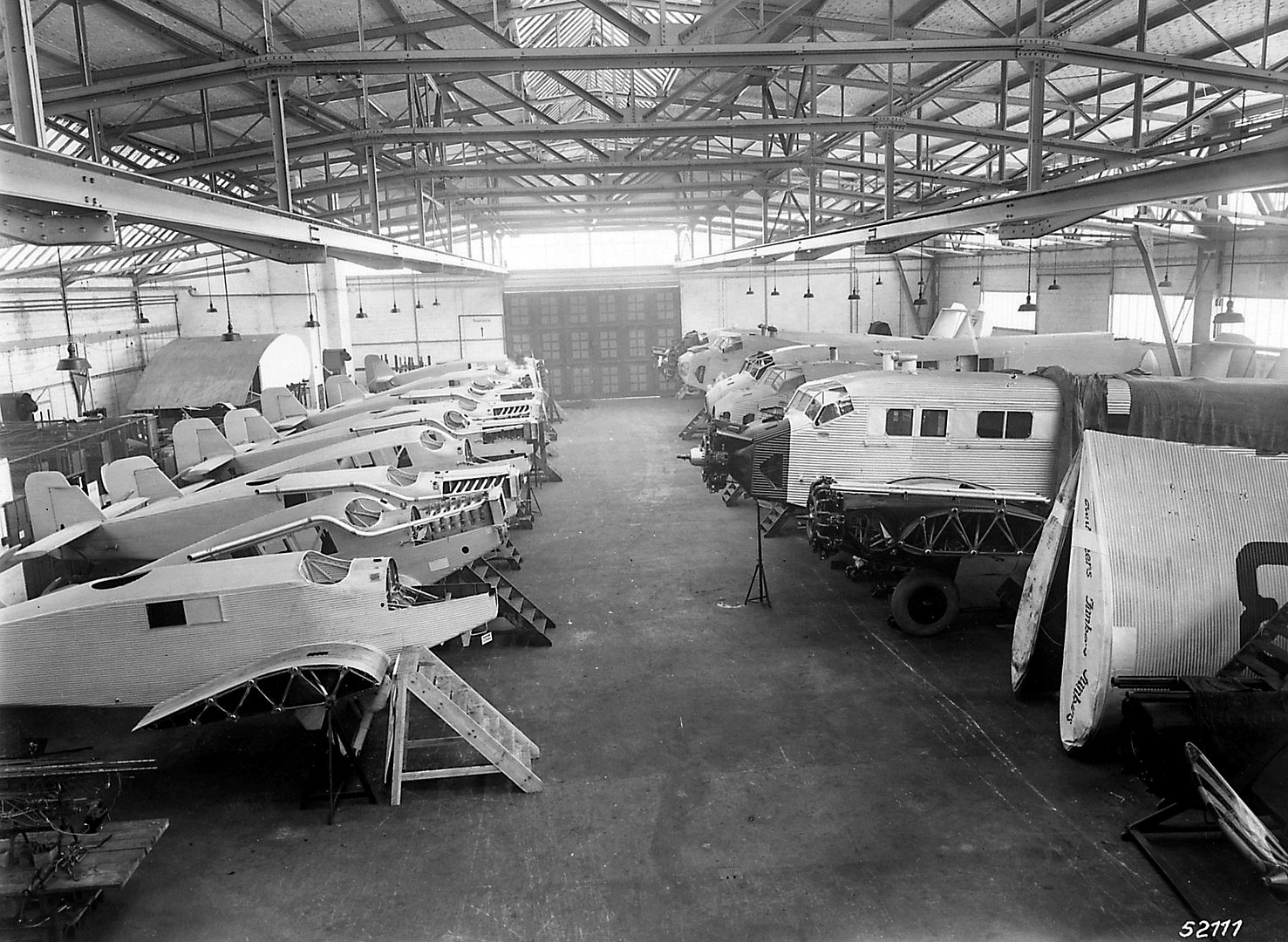

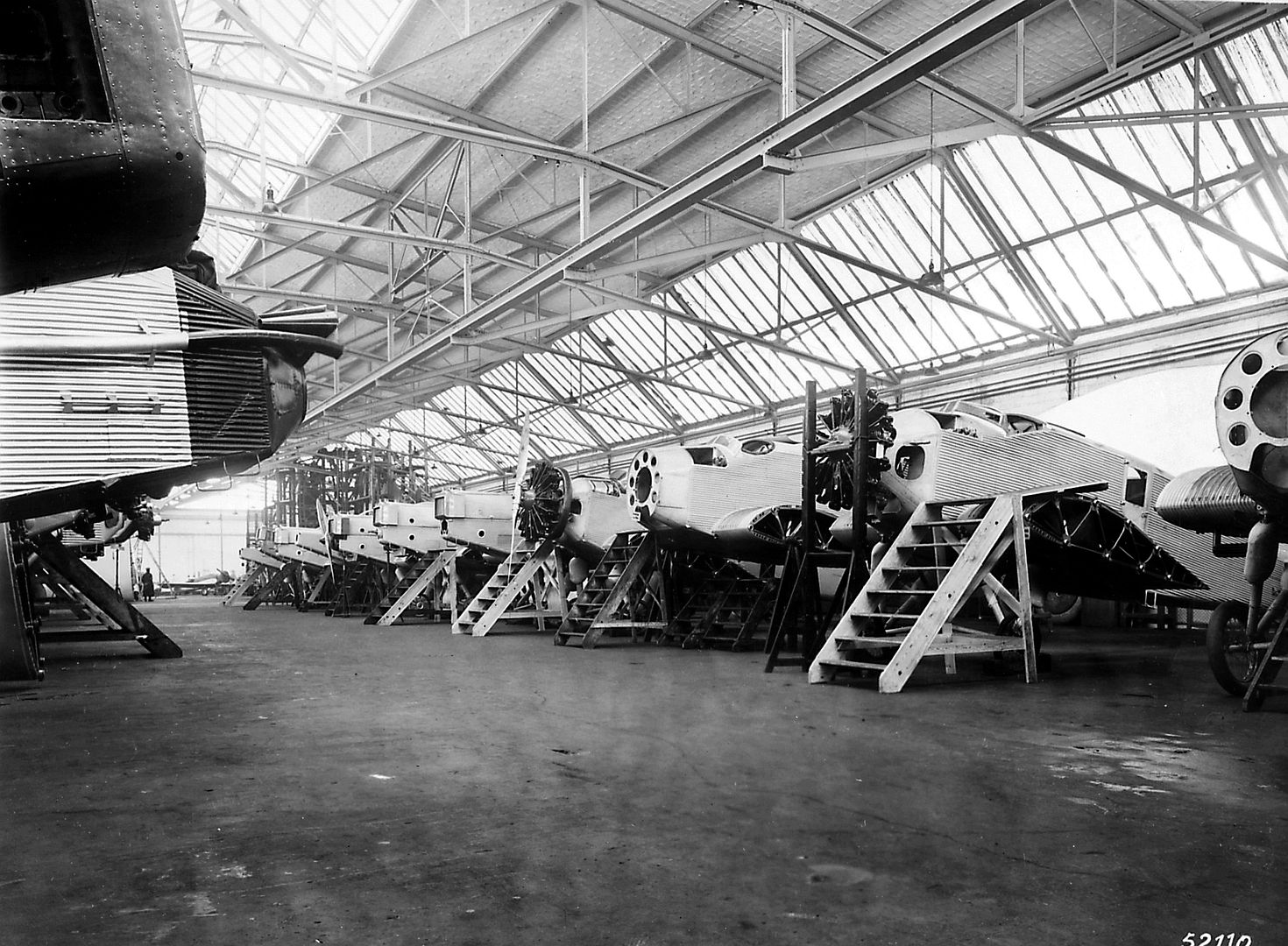

    Junkers F13 Prodution Hall
    2
    1

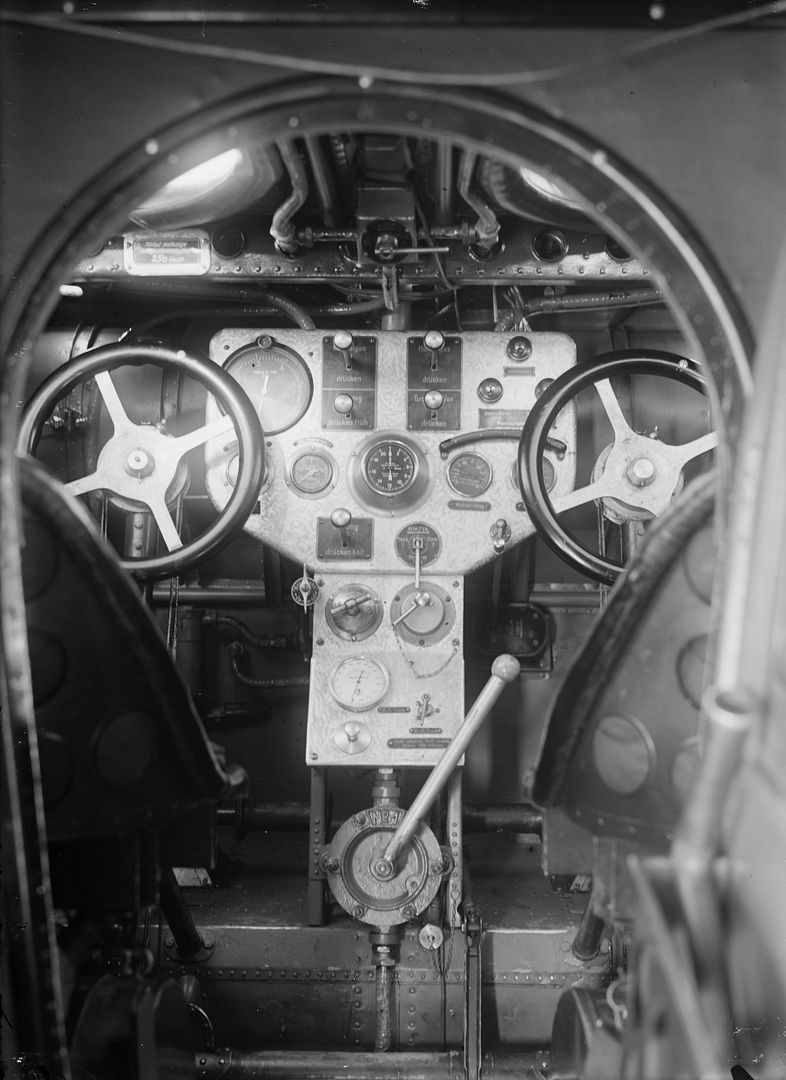

    F13 Cockpit

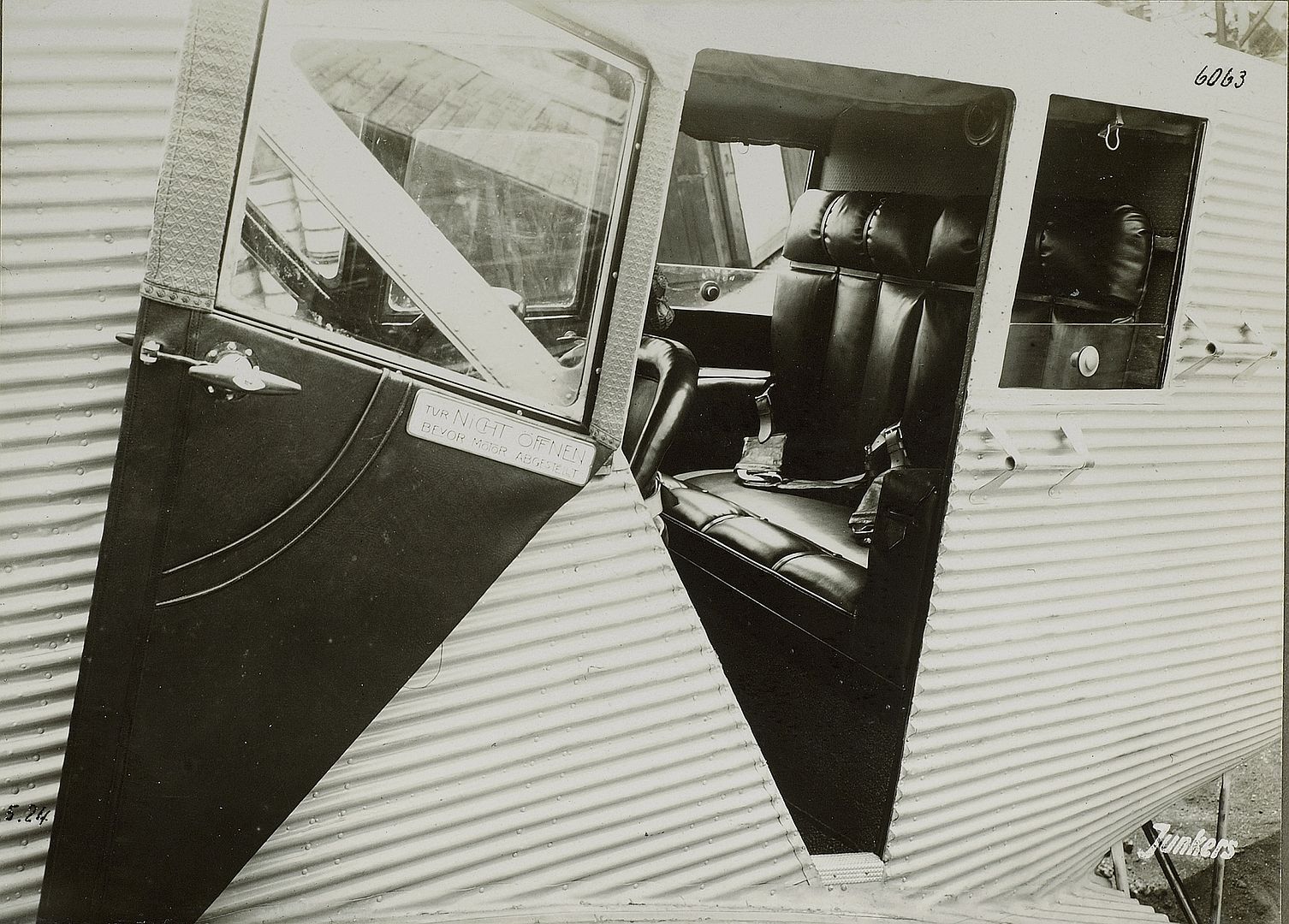

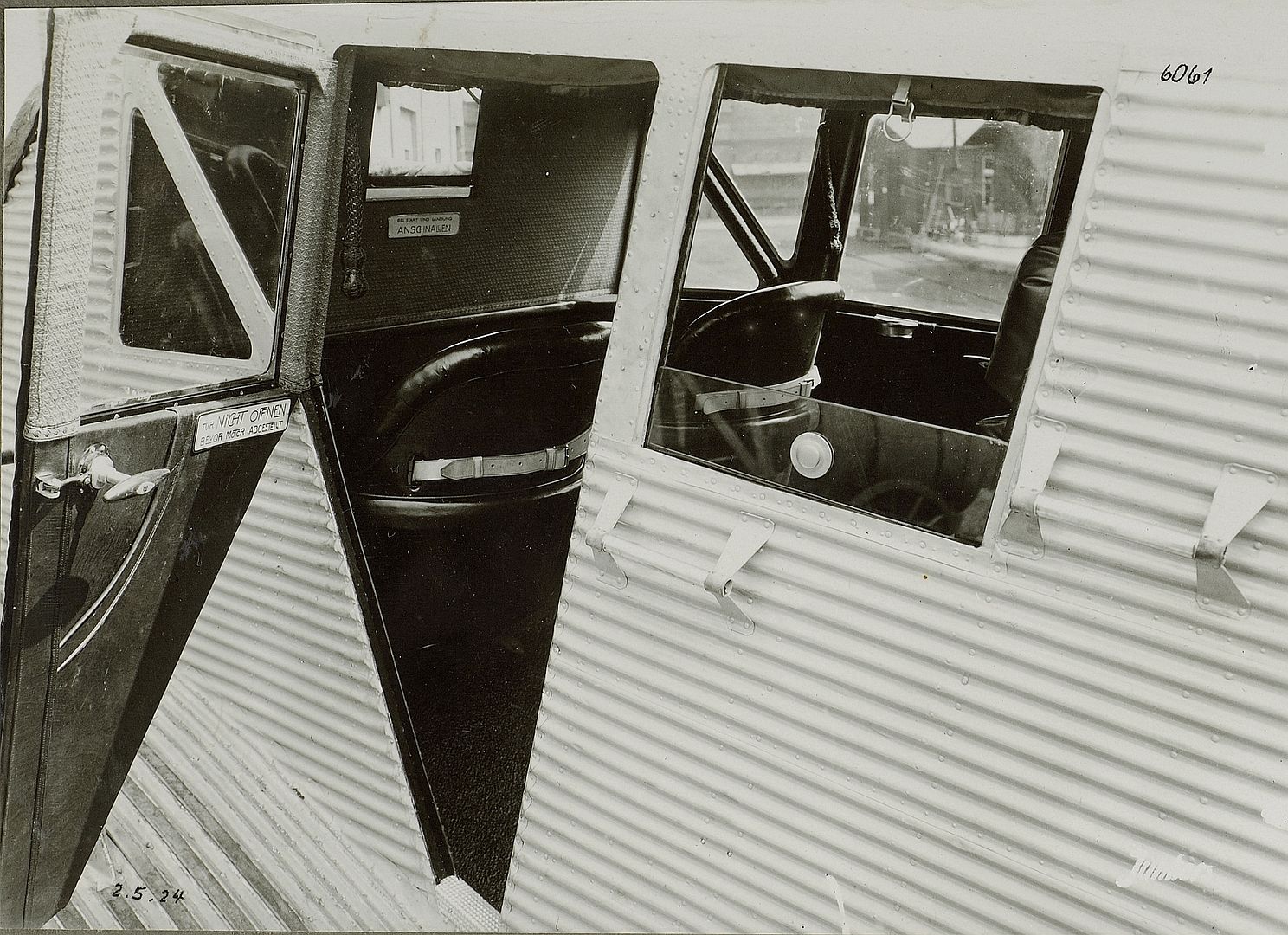

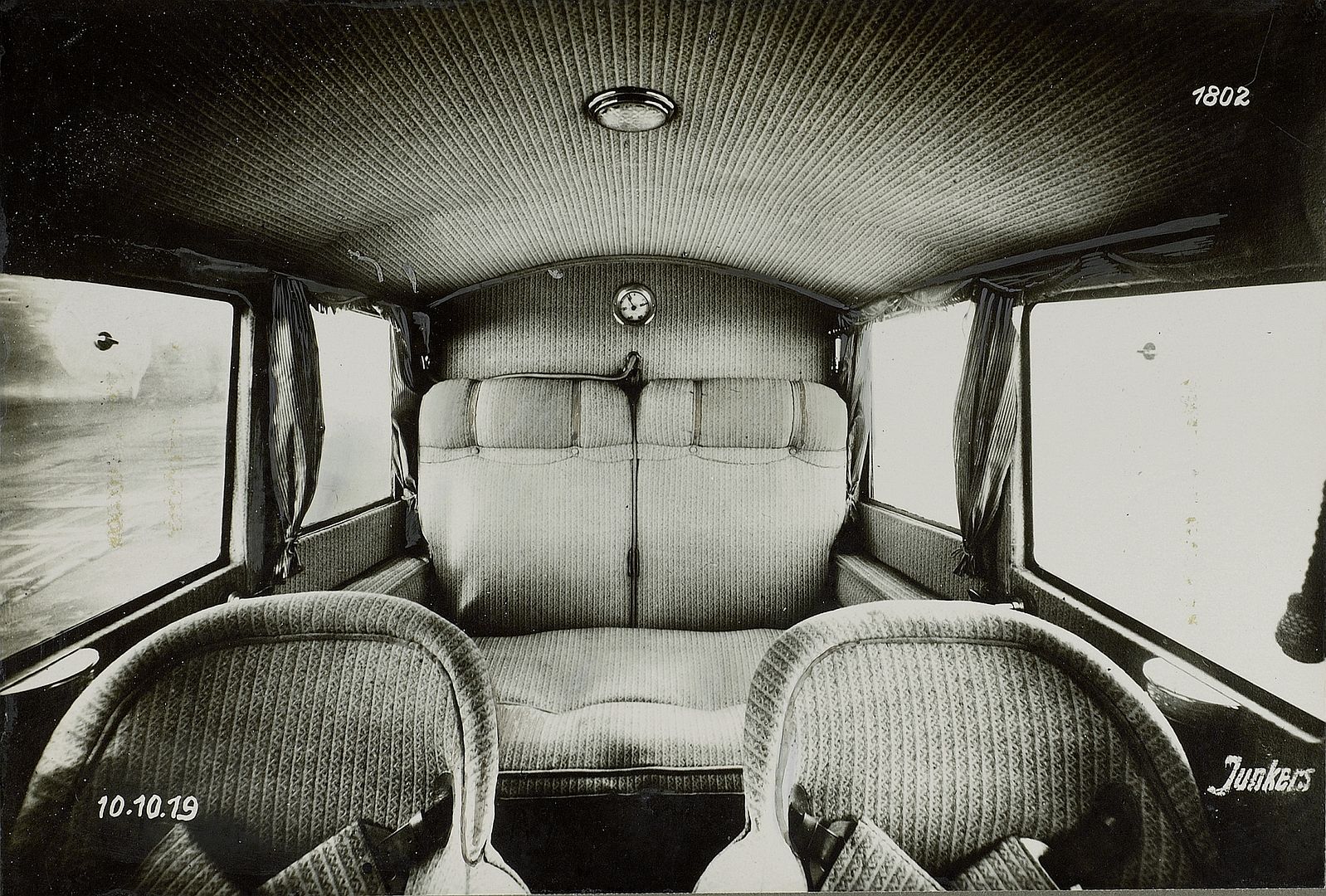

    F13 Cabin
    1
    2

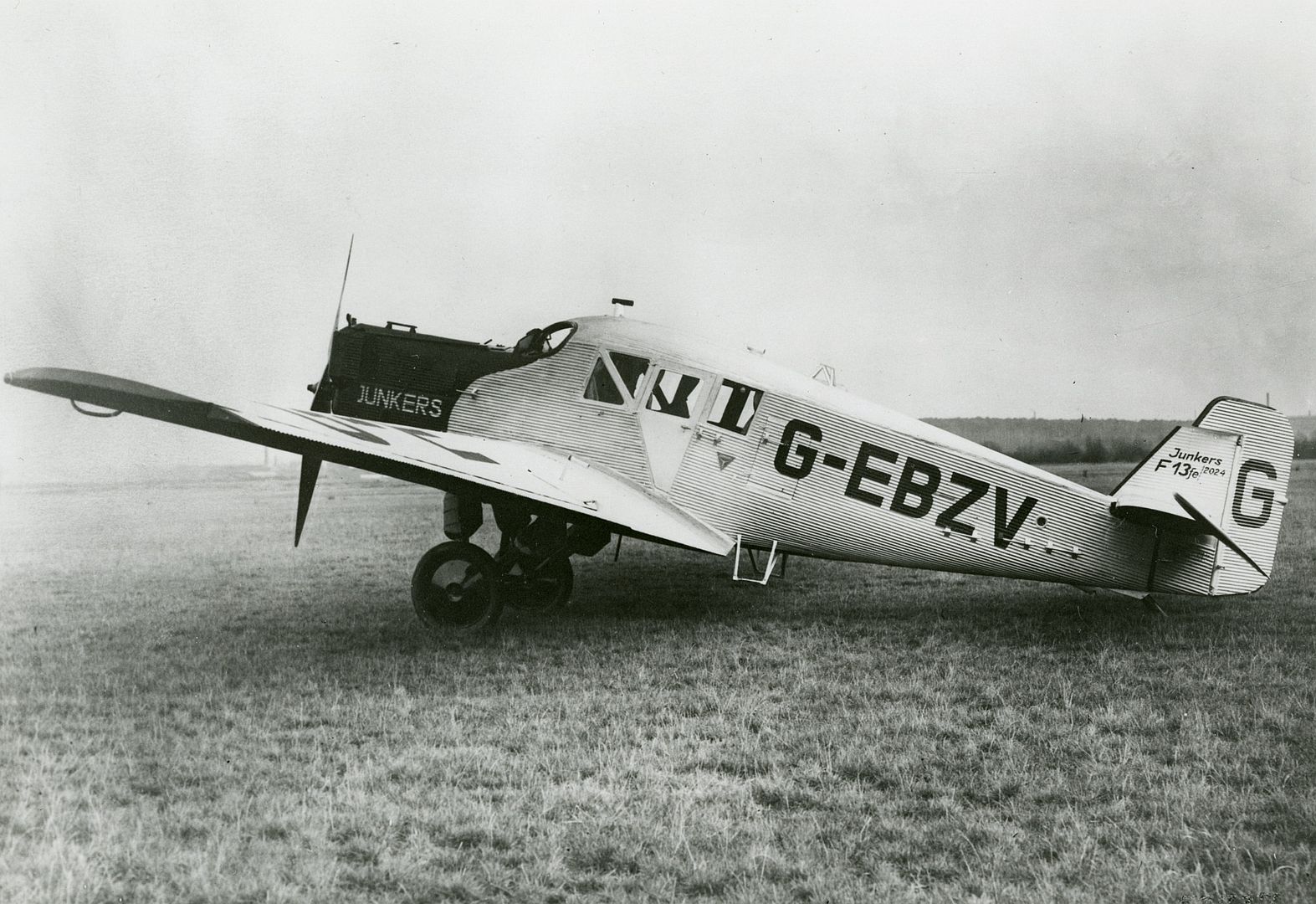

    EBZV 1929

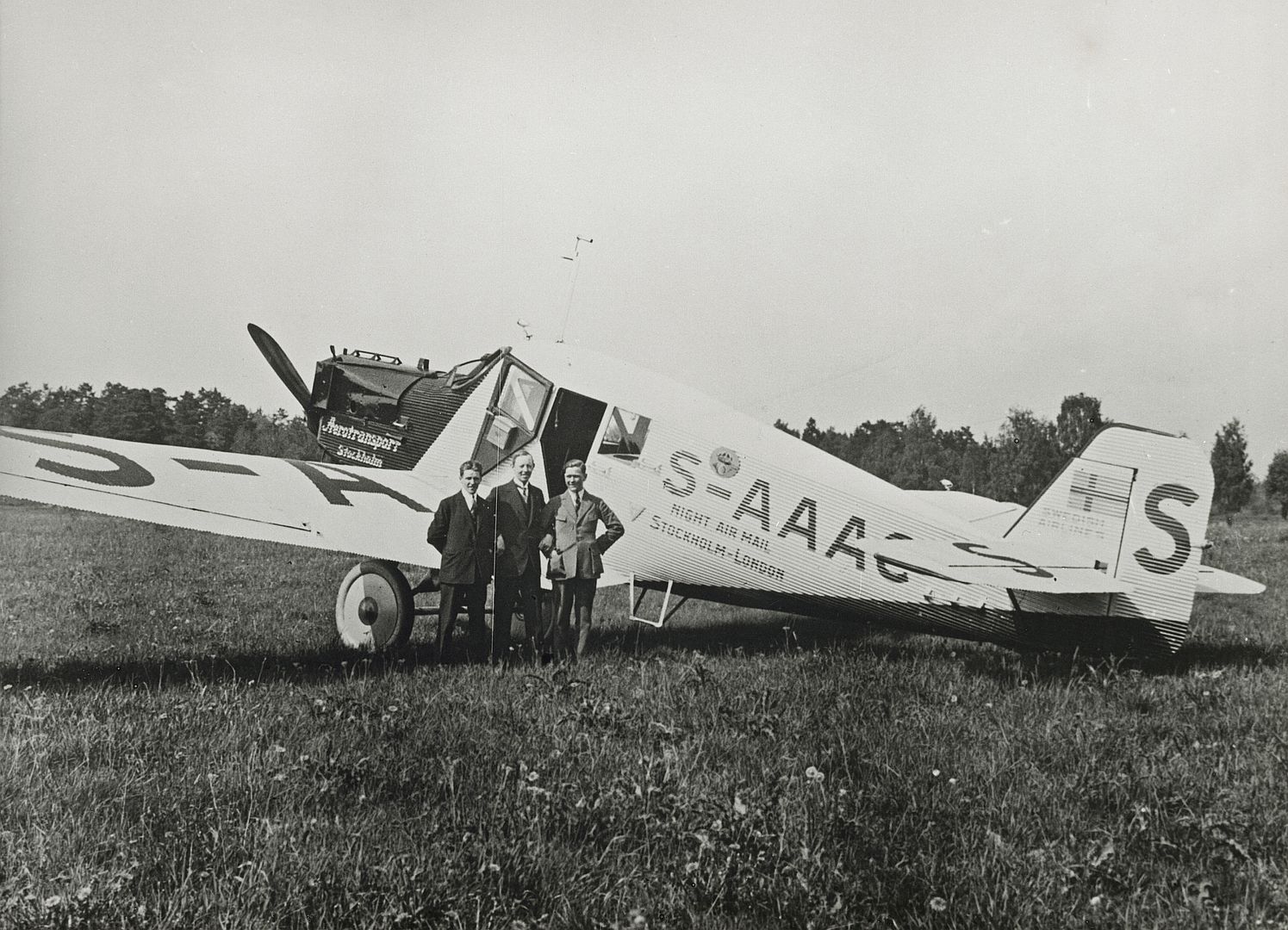

    AAAC
    1
    LAT B Pheasant Seized In Reval
    Captain Fritz Loose On Junkers F 13 W

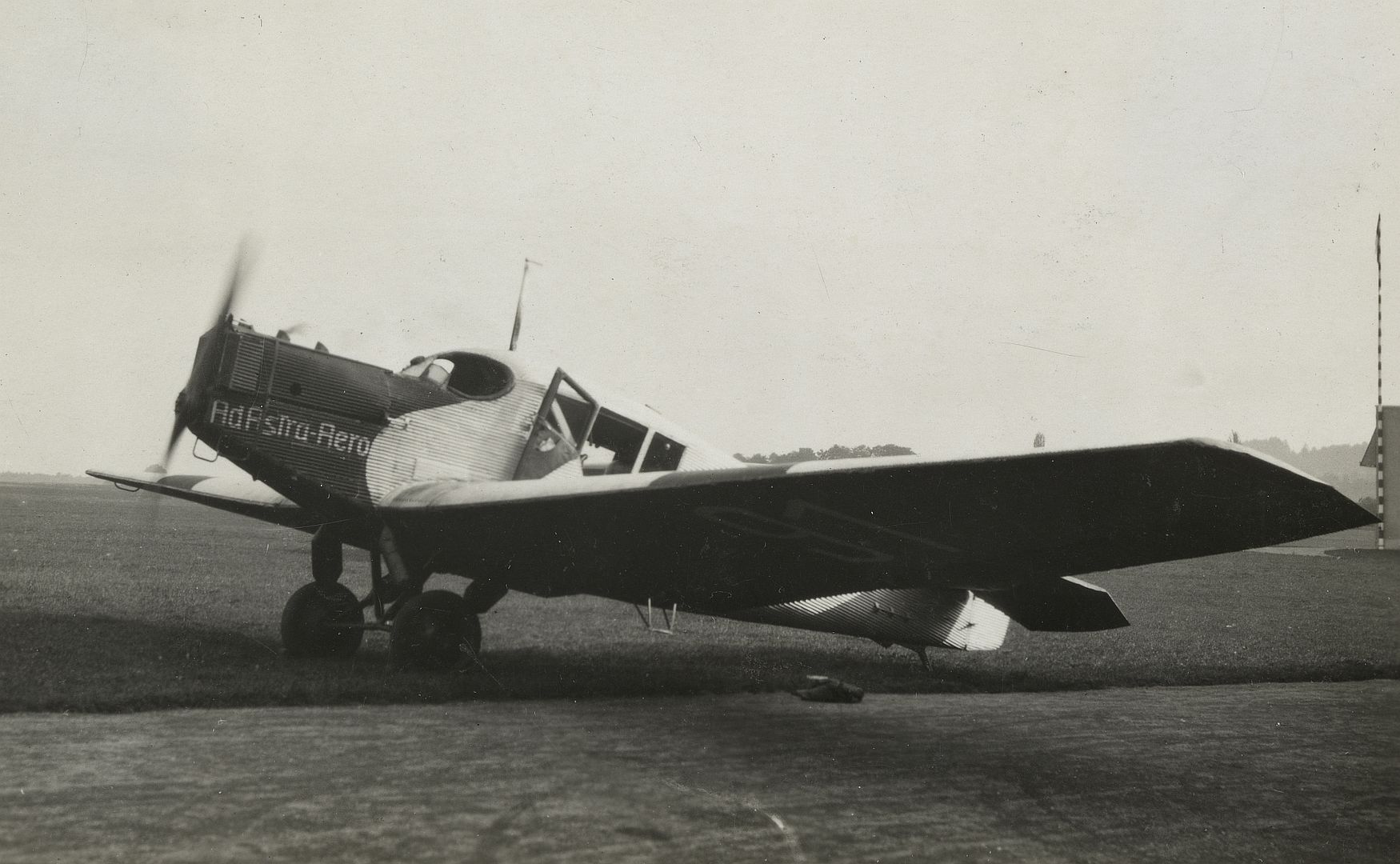

    F13 Ad Astra 91

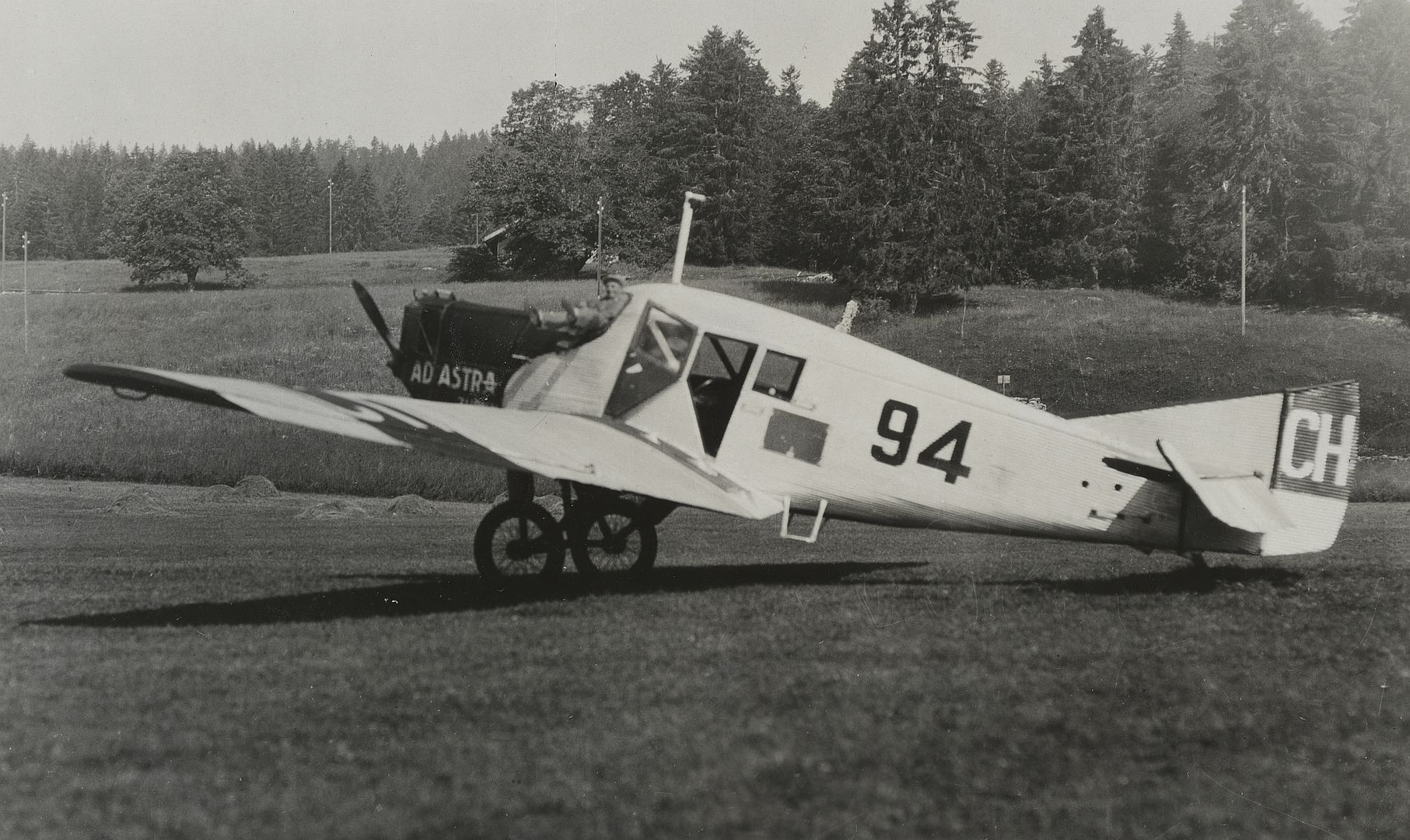

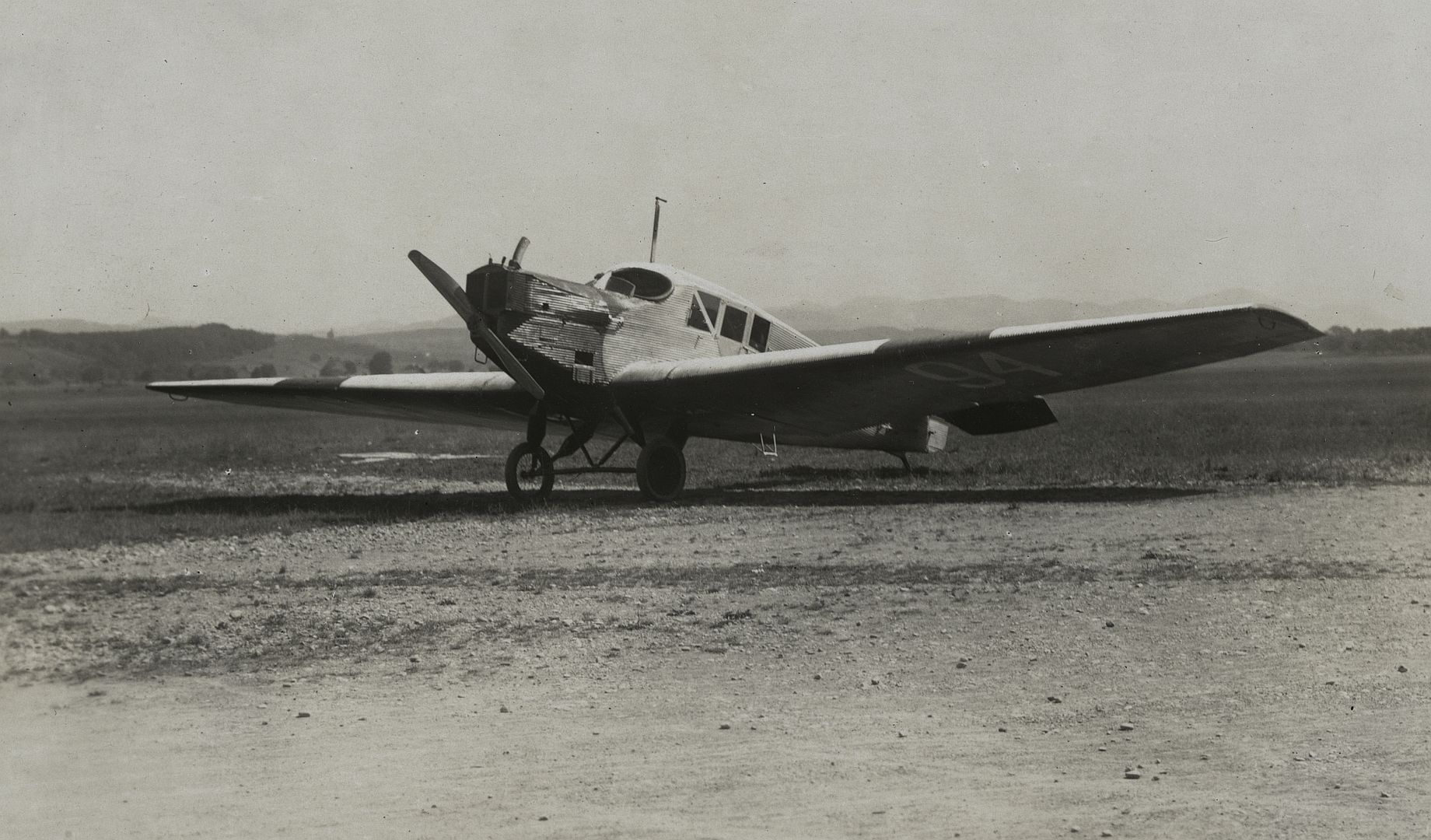

    F13 Ad Astra 94
     Helsingfors
    Devau Airfield

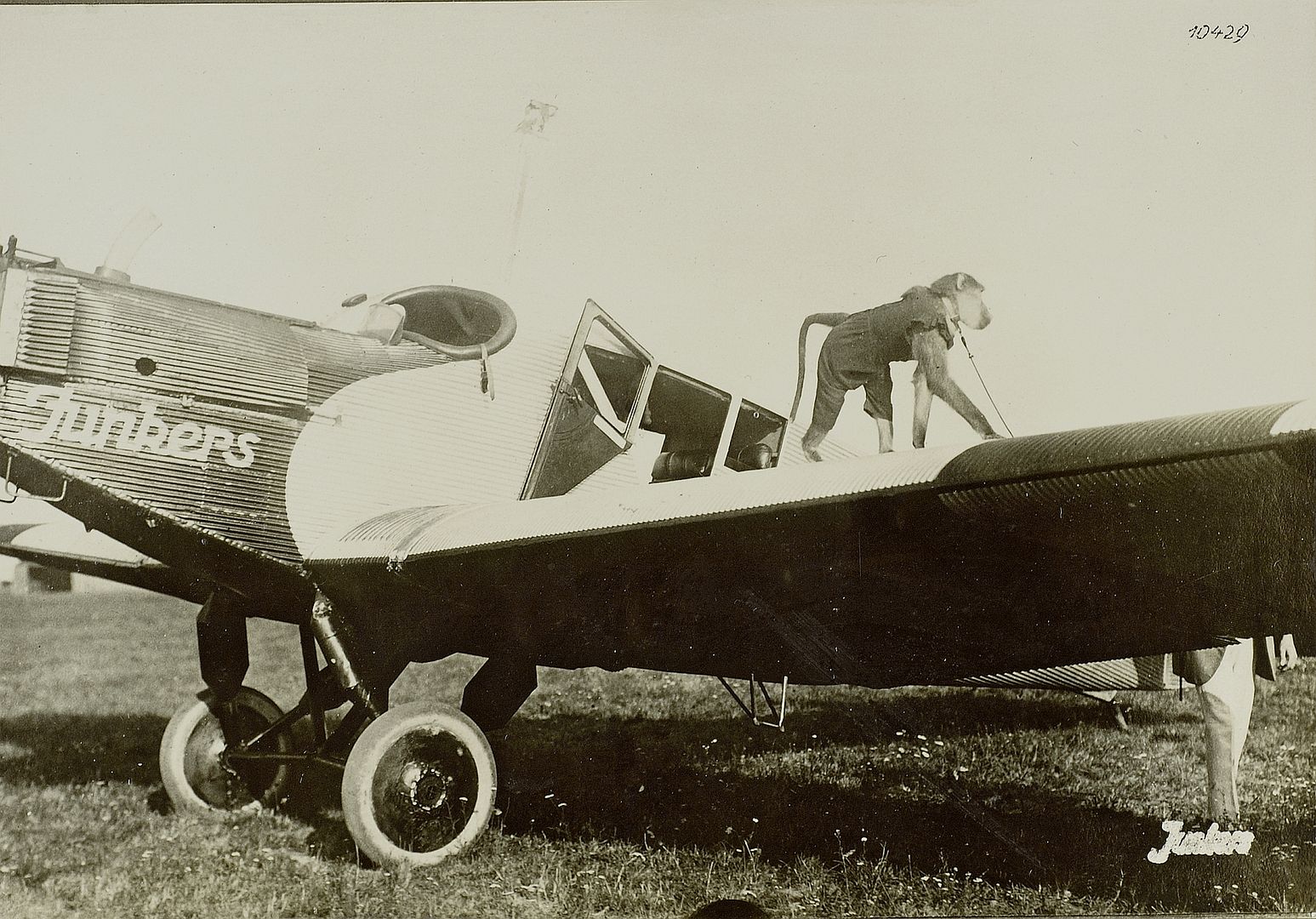

    13 Ape

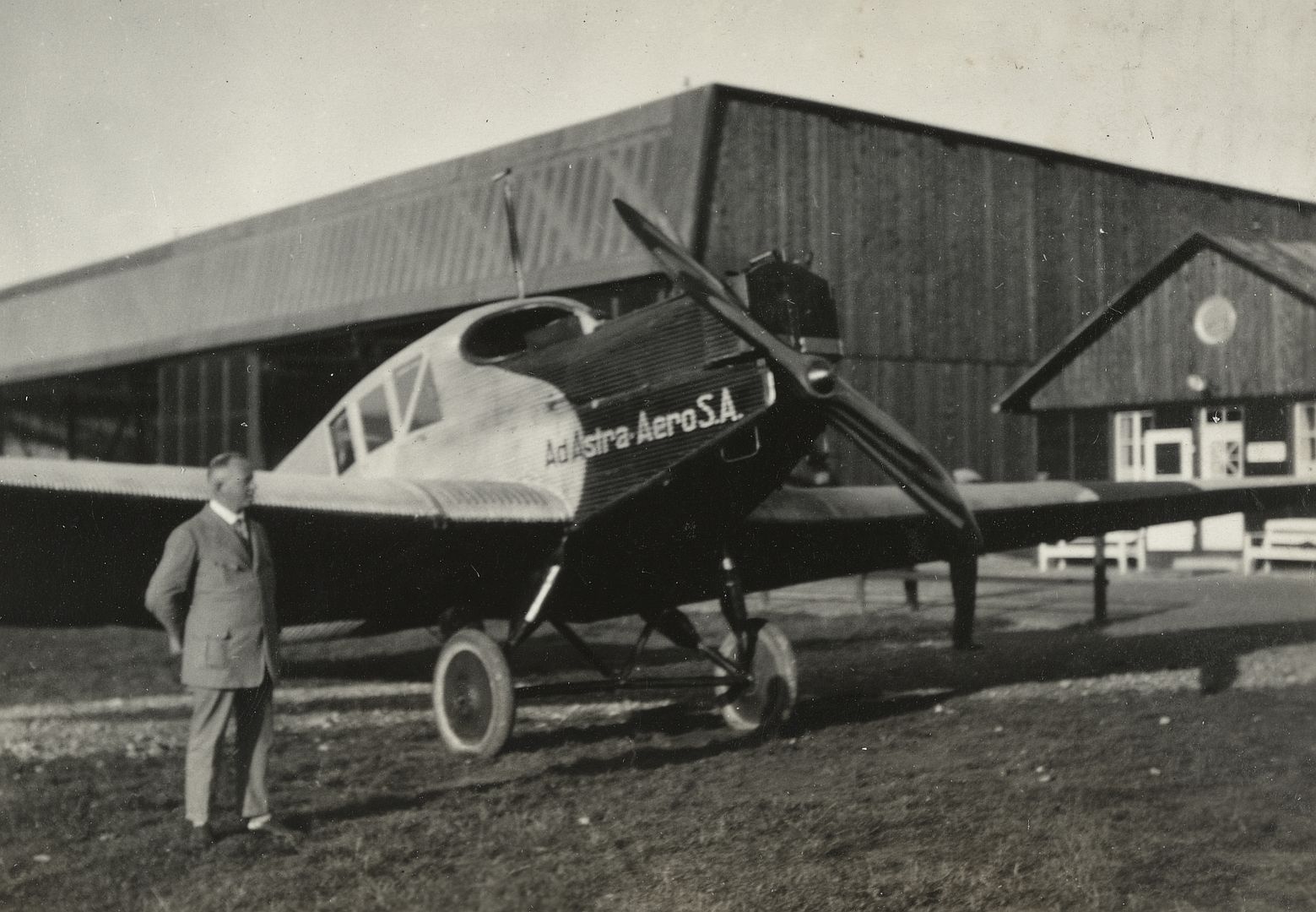

    F13 Ad Astra
    F13 Engine Start

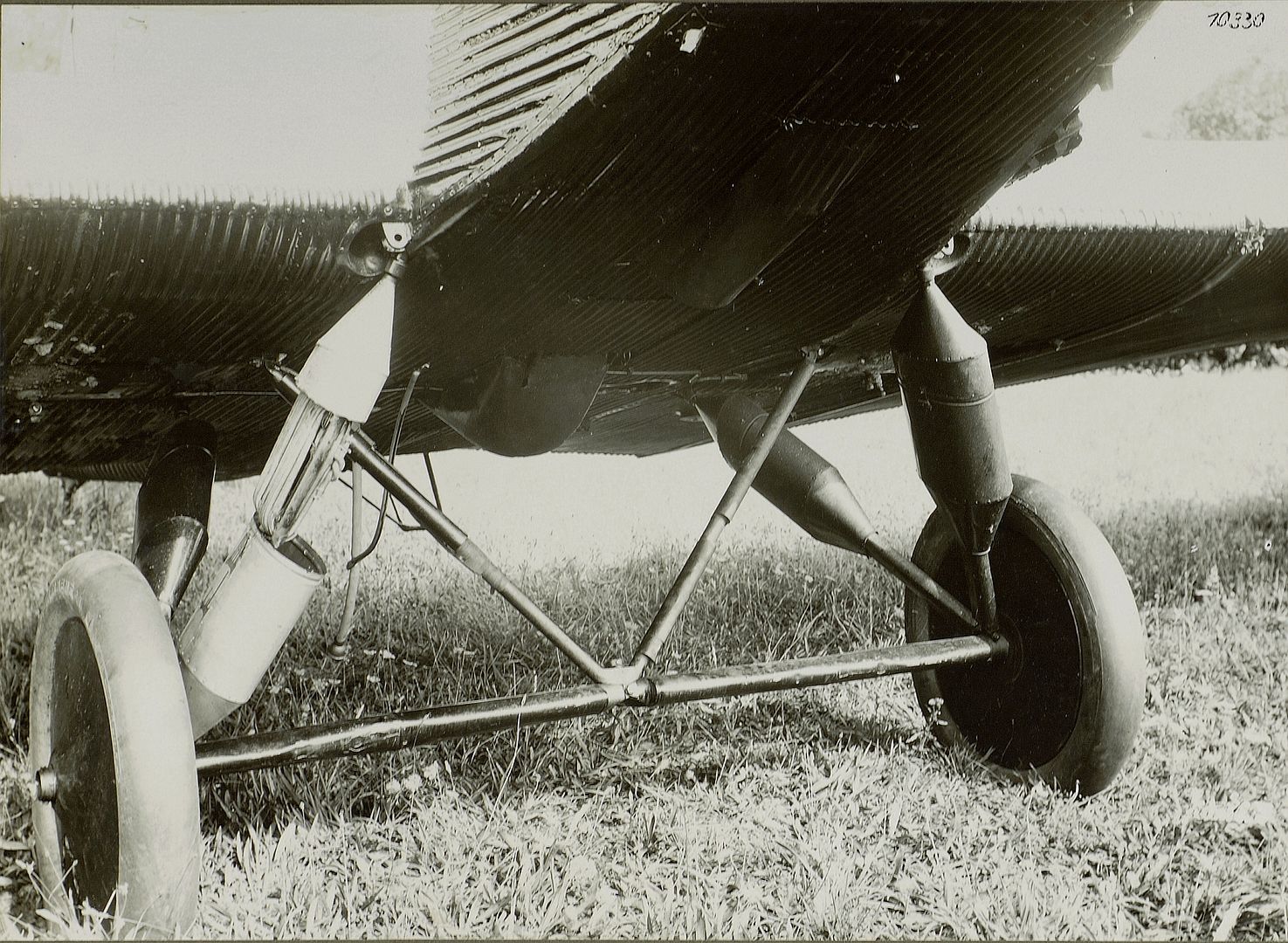

    13 Wheels
    2
    1

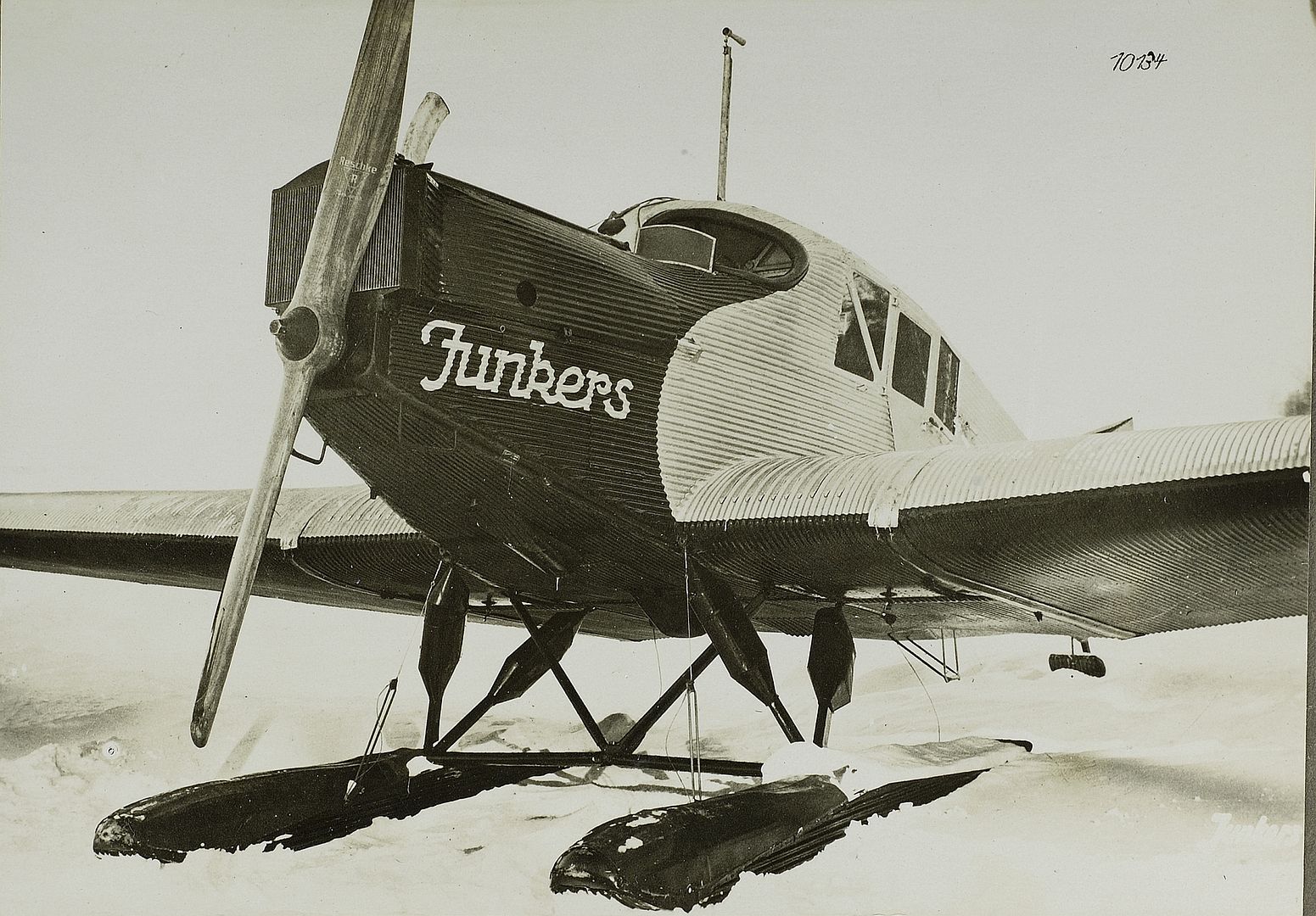

    F13 Skis

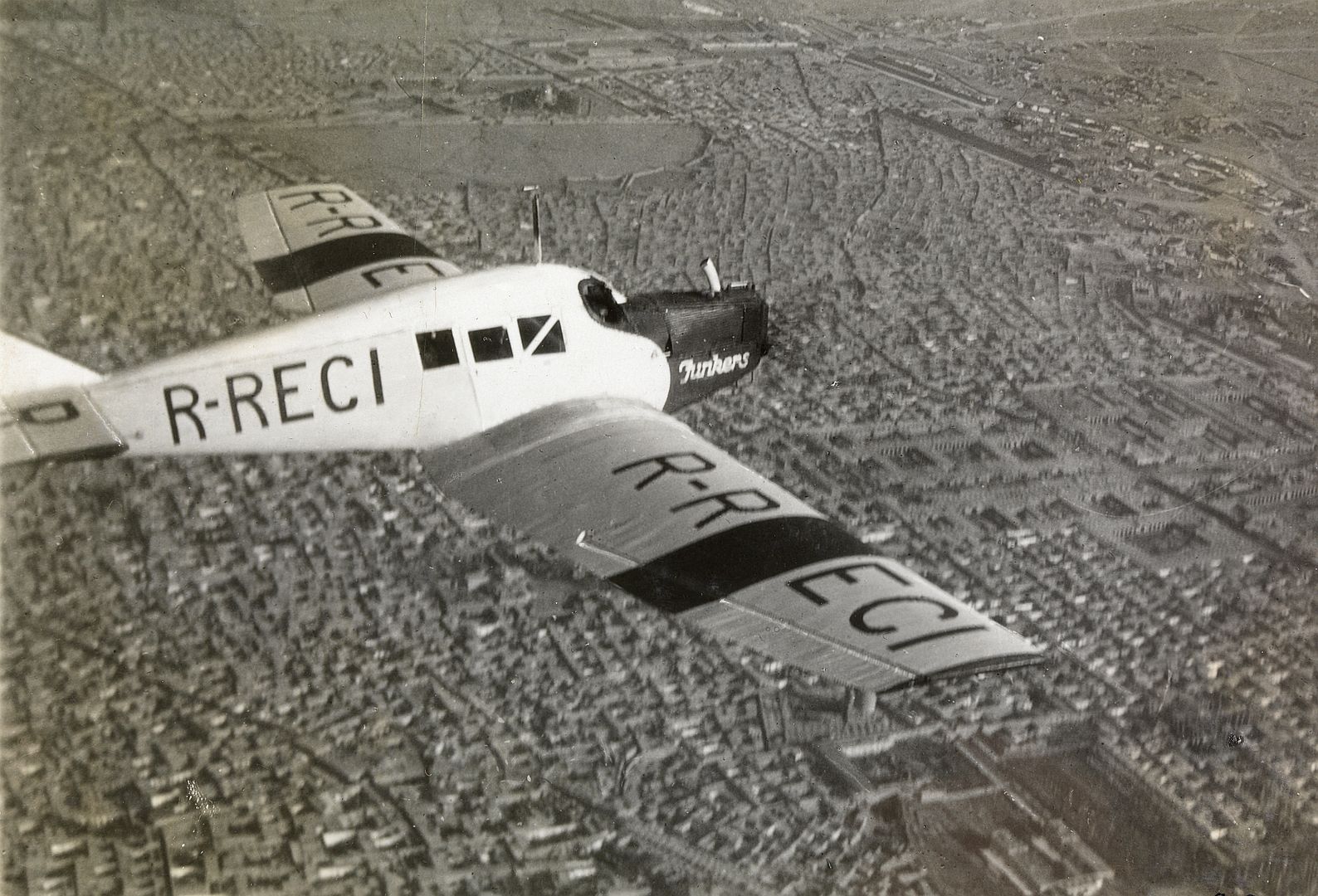

    RECI Over Tehran

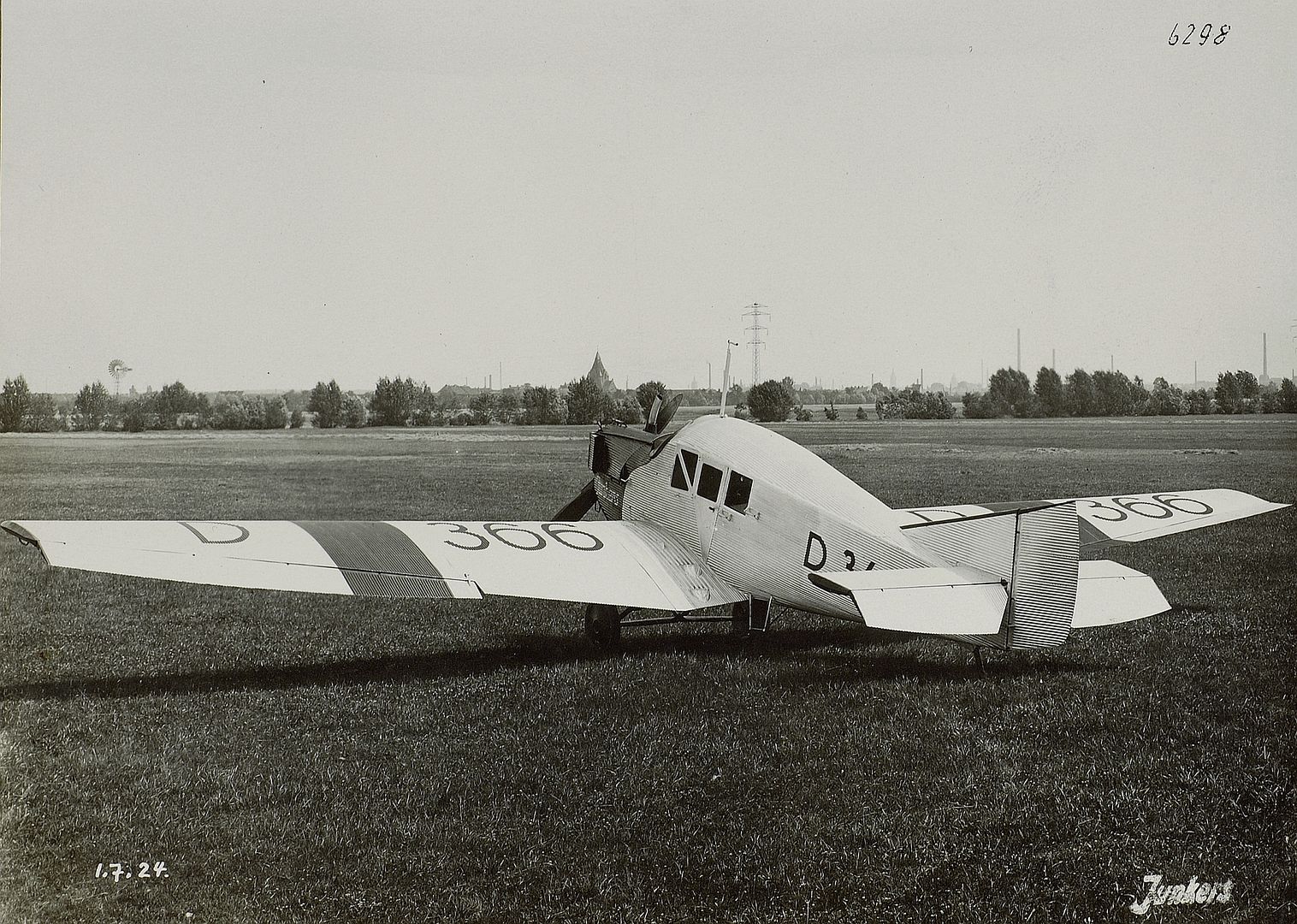

    366

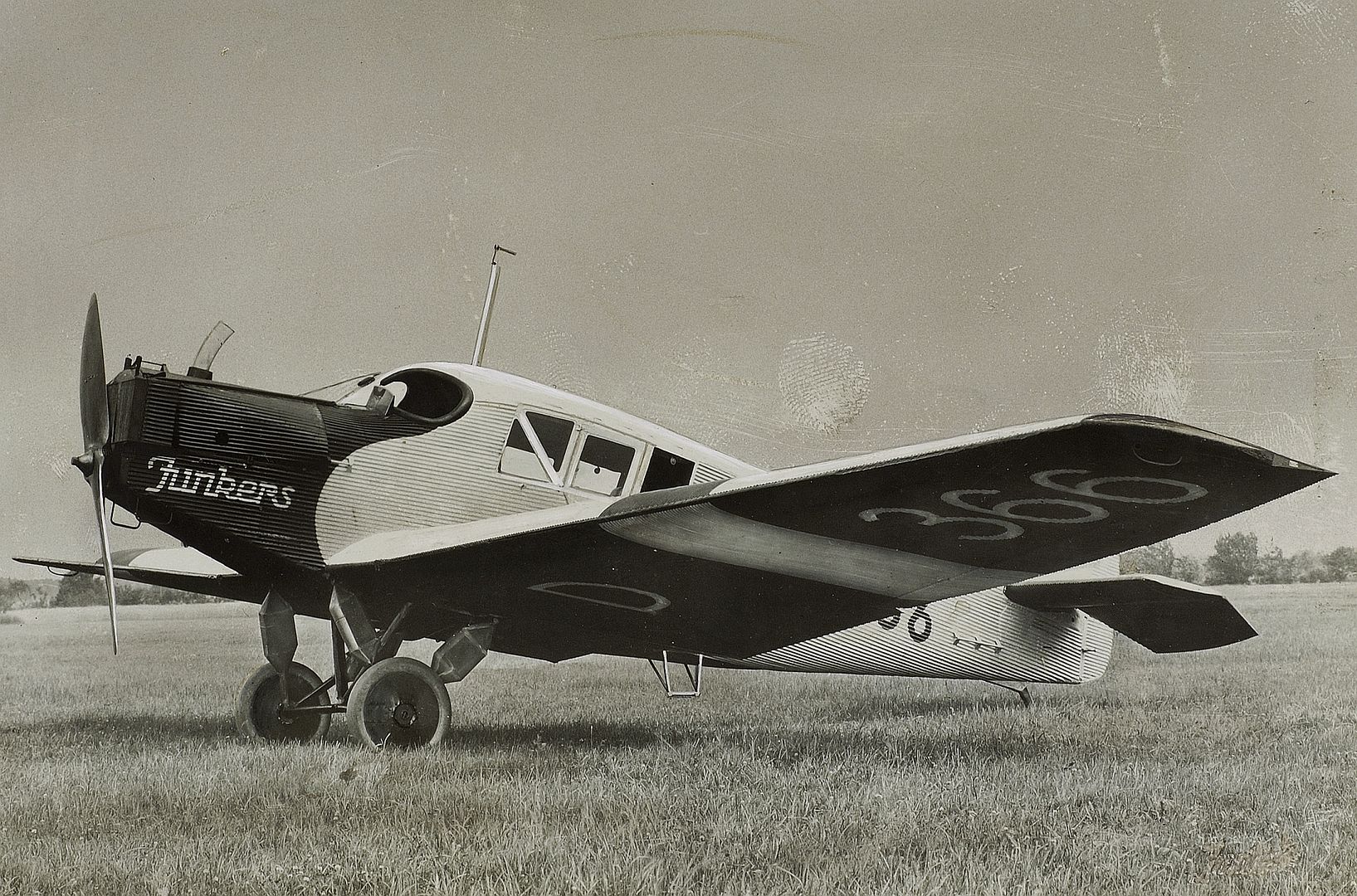

    1
     230 Hp Siddeley Puma
    Junkers F 13 Tillh Rande AB Aerotransport
    AWAA Tillh Rande AB Aerotransport
    1

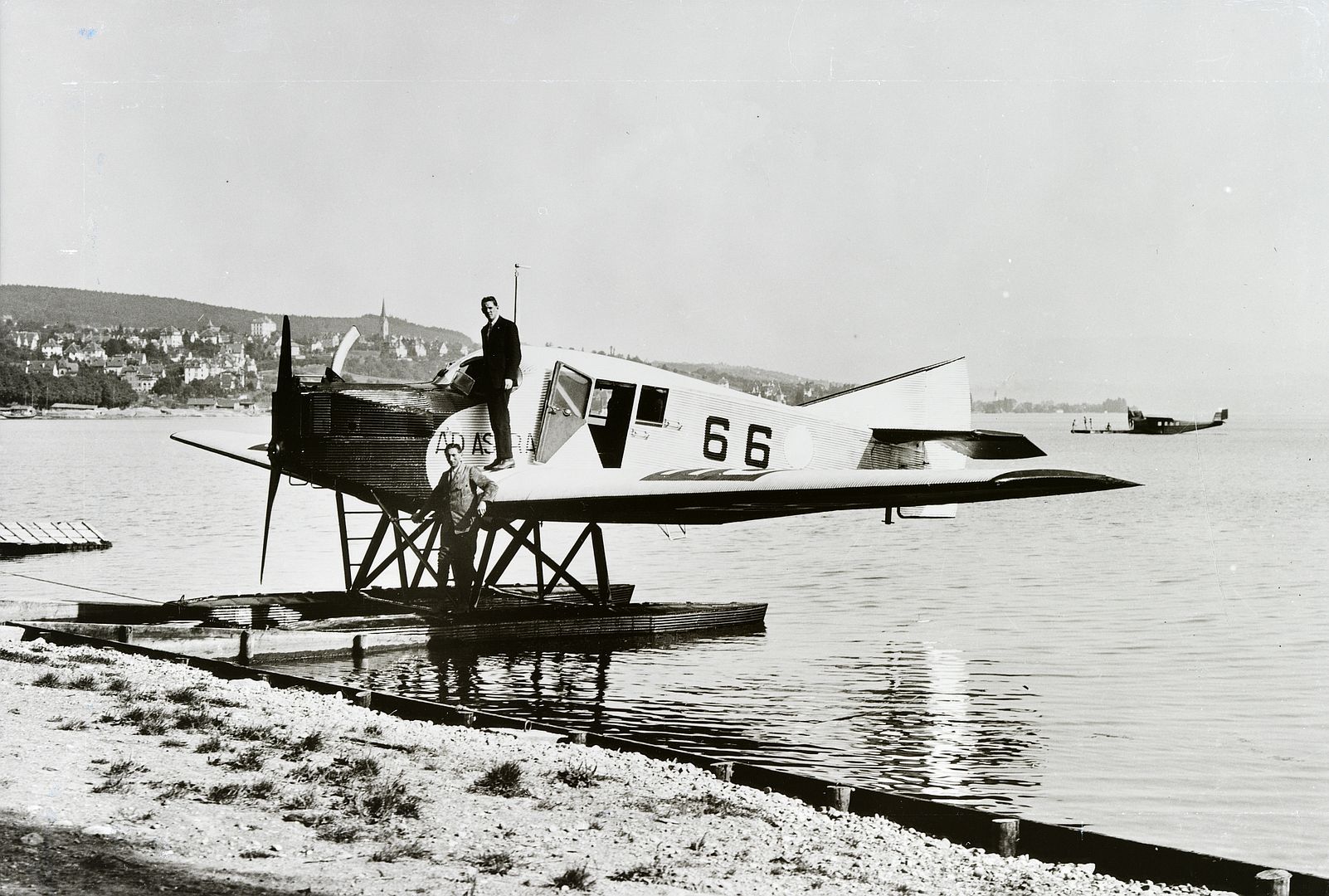

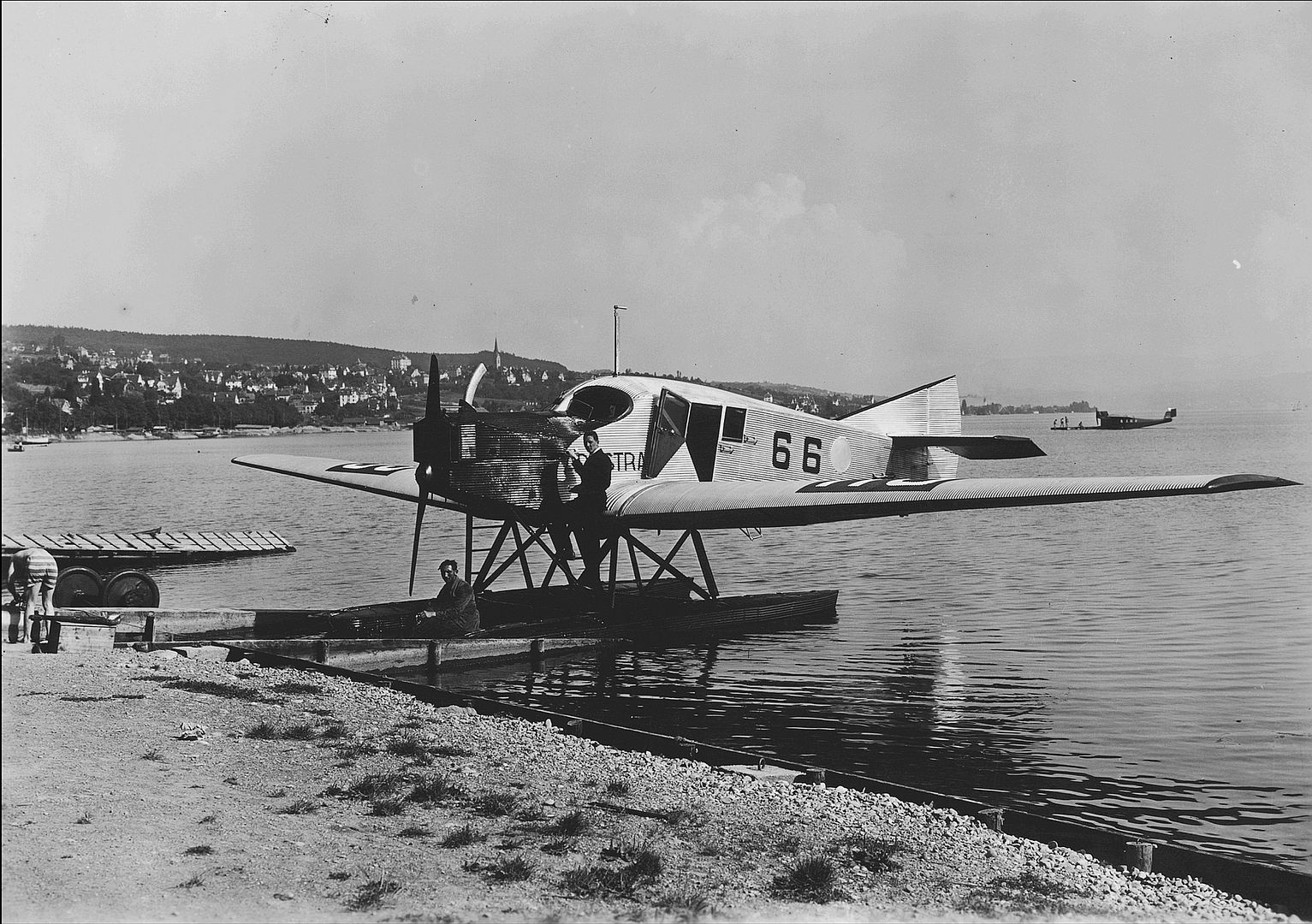

    66 Ad Astra

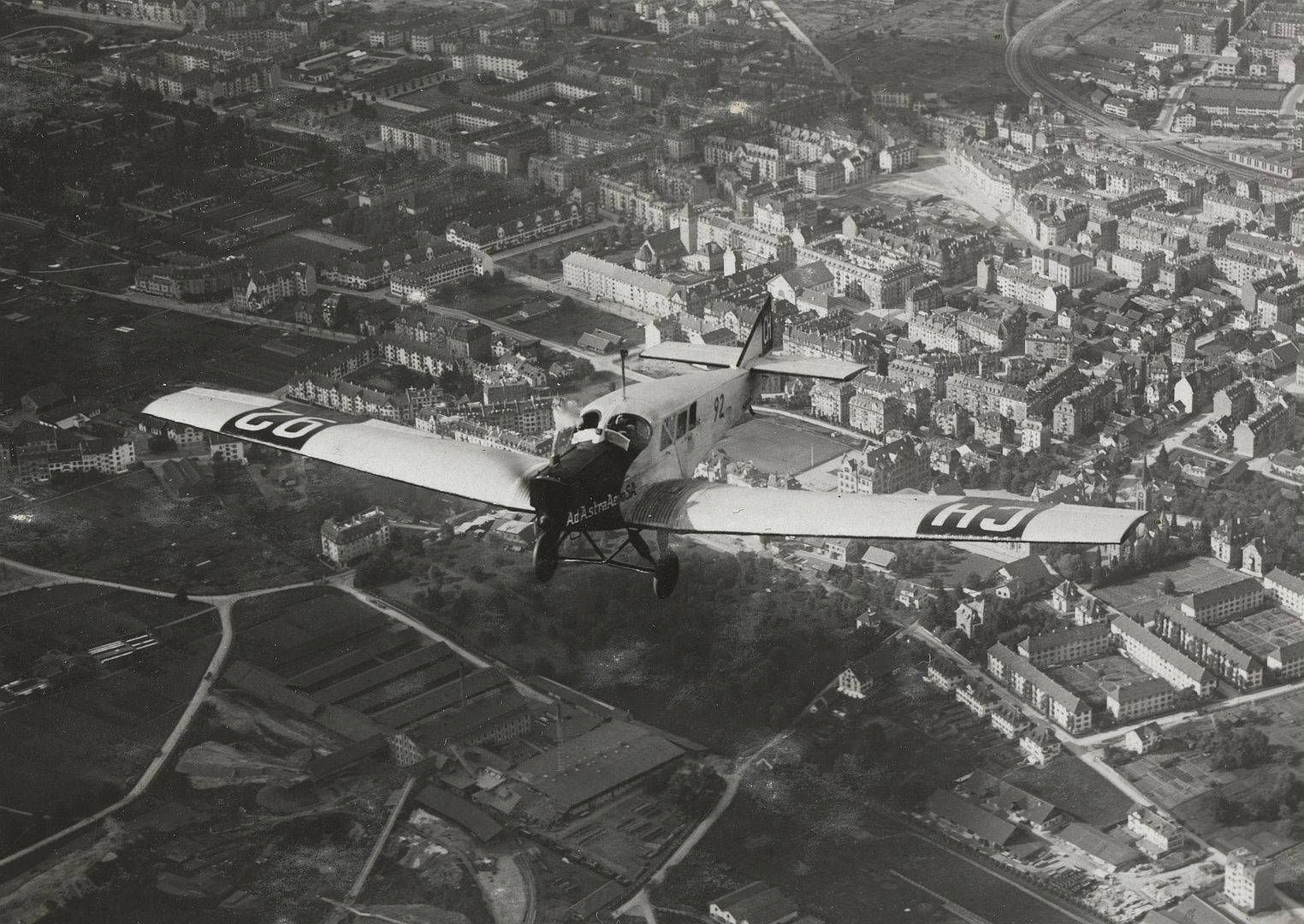

    92 Of Ad Astra Aero AG At The Vienna Airfield
    1
    Junkers F 13 Sj Flygplan Startar P Sthammarsfj Rden Uppland
    1

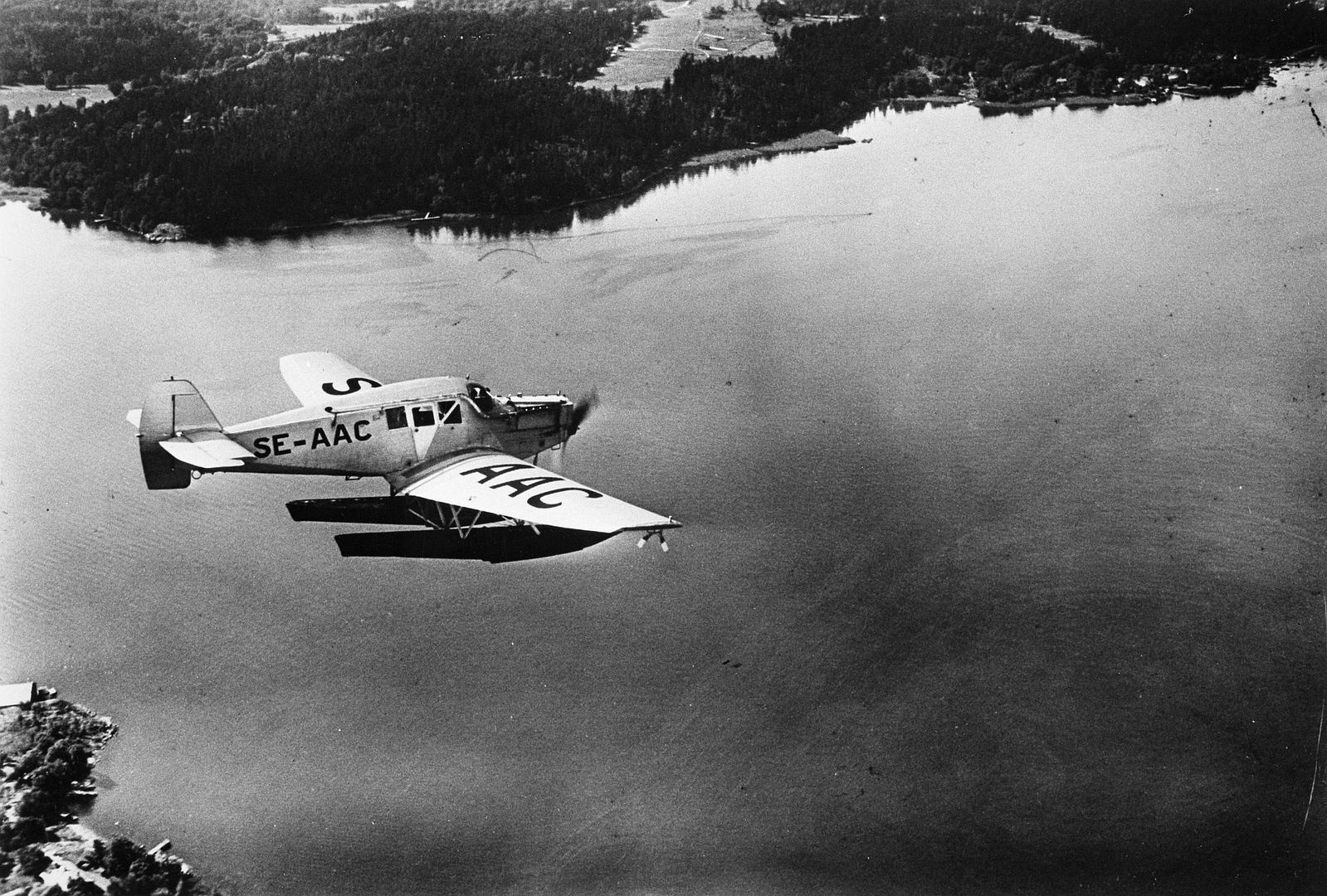

    AAC
    13 Floatplane D207

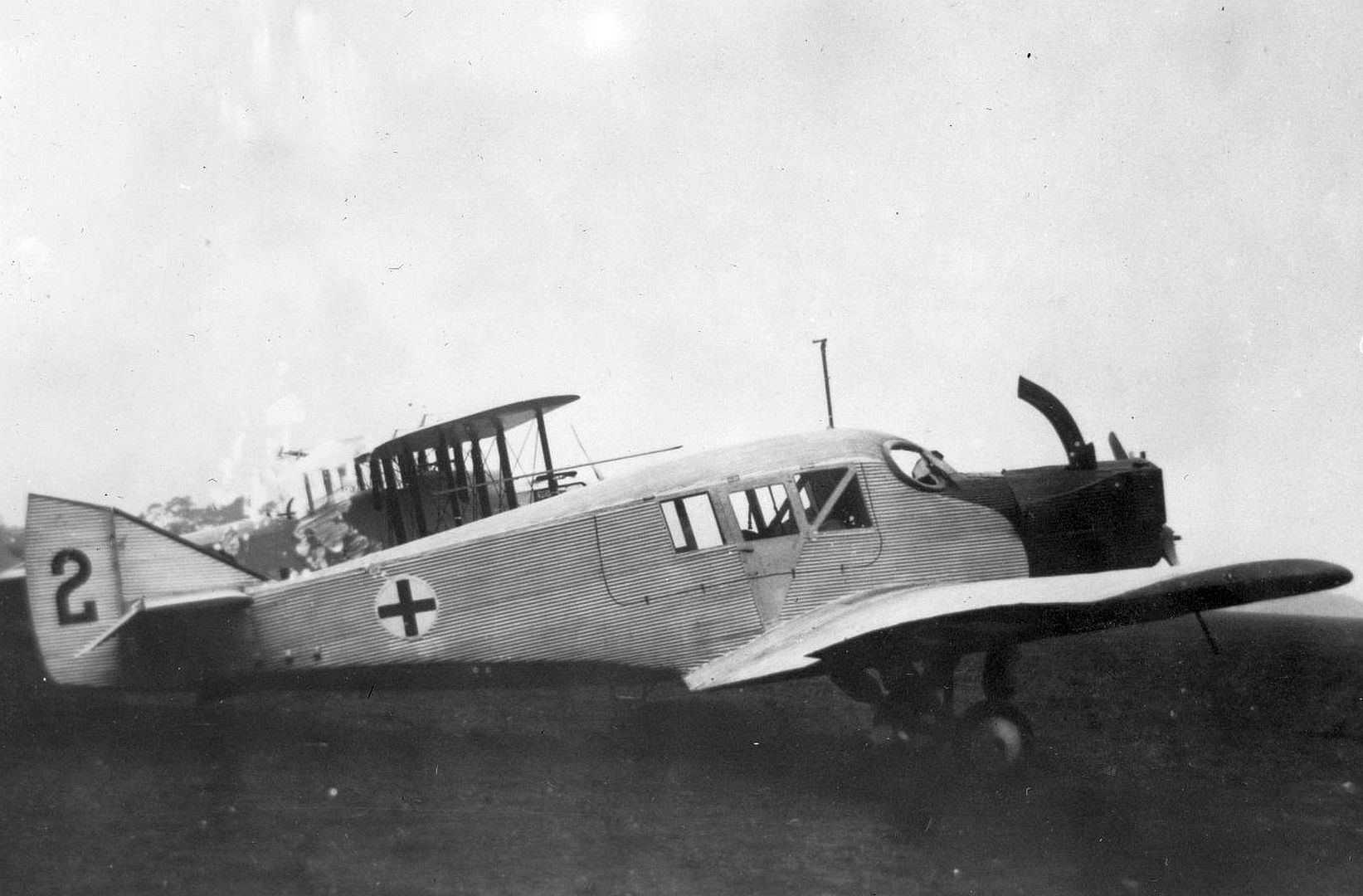

    13 Ambulance
    Junkers F13 Commercial Aircraft In K Nigsberg Airport

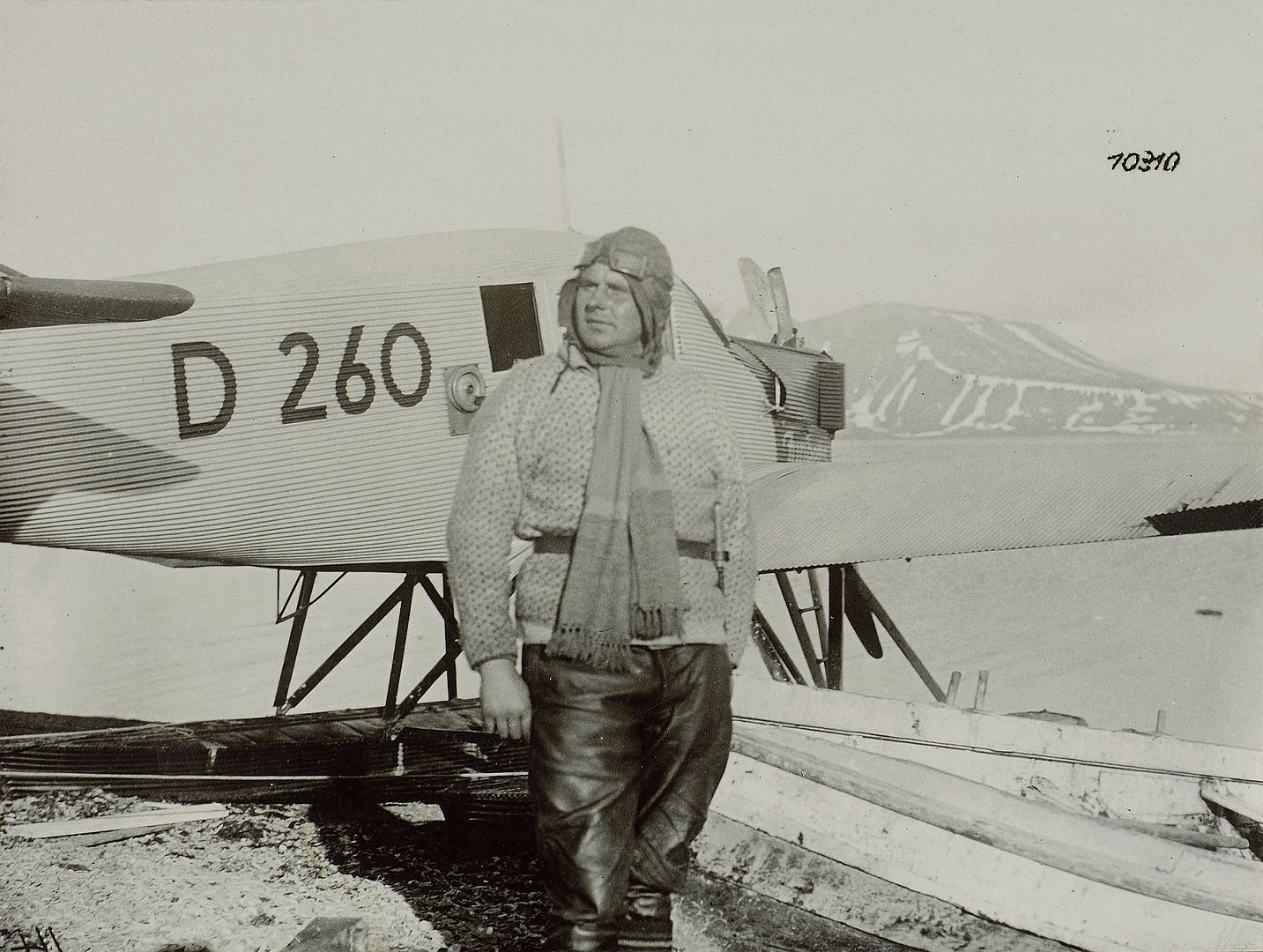

    Junkers F13W D260 Spitsbergen Expedition
    Junkers G 23 In Flight Over A Junkers F13

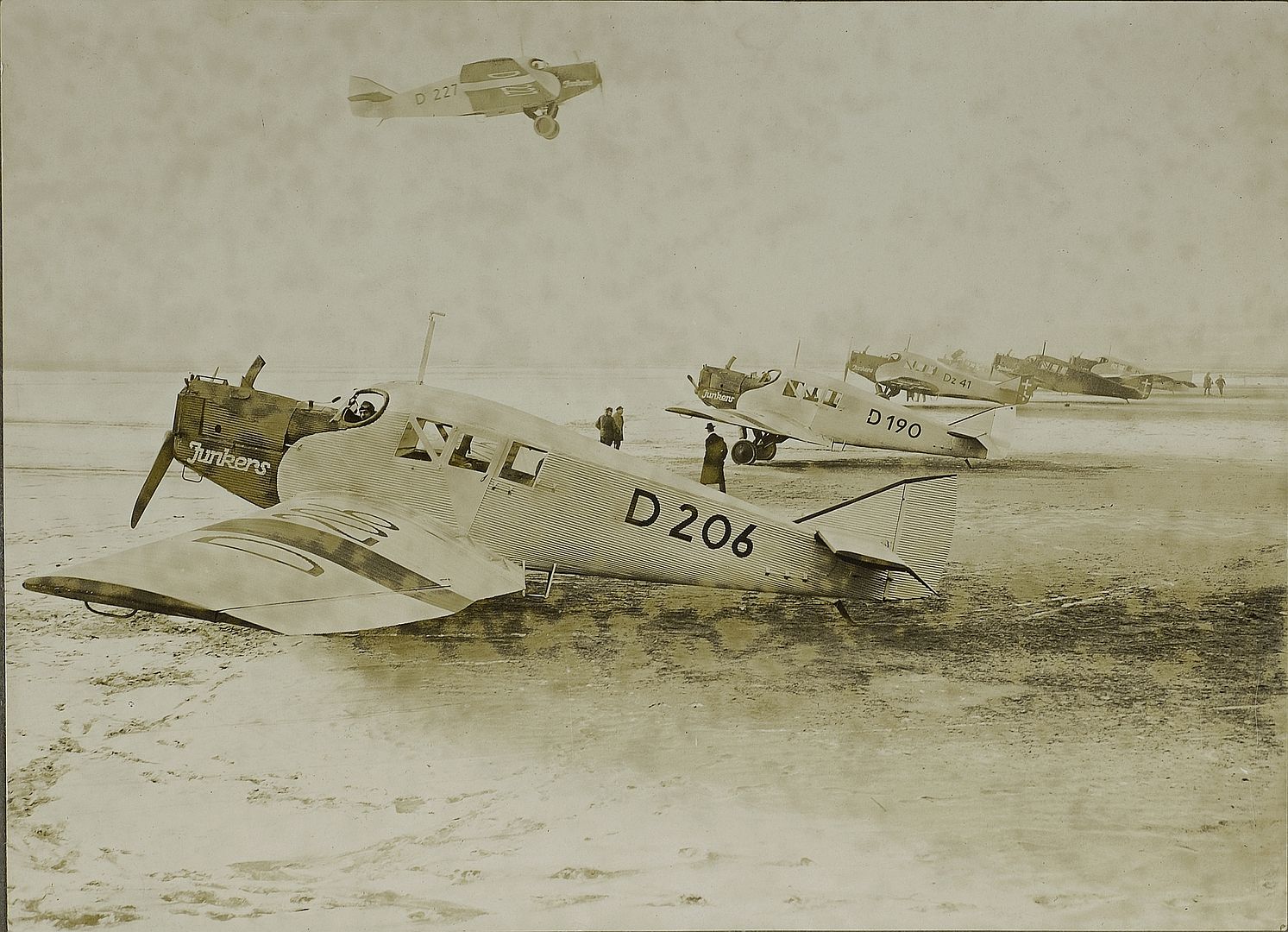

    Star Flight 1923 To The Leipzig Fair
    Junkers Seaplane Type F E13 Pilot Grootwal
    92
    Below JL-6





    Below the Finnish Air Force service, modified one with a Pratt and Whitney engine and enclosed cockpit.This aircraft was still in use in 1942.

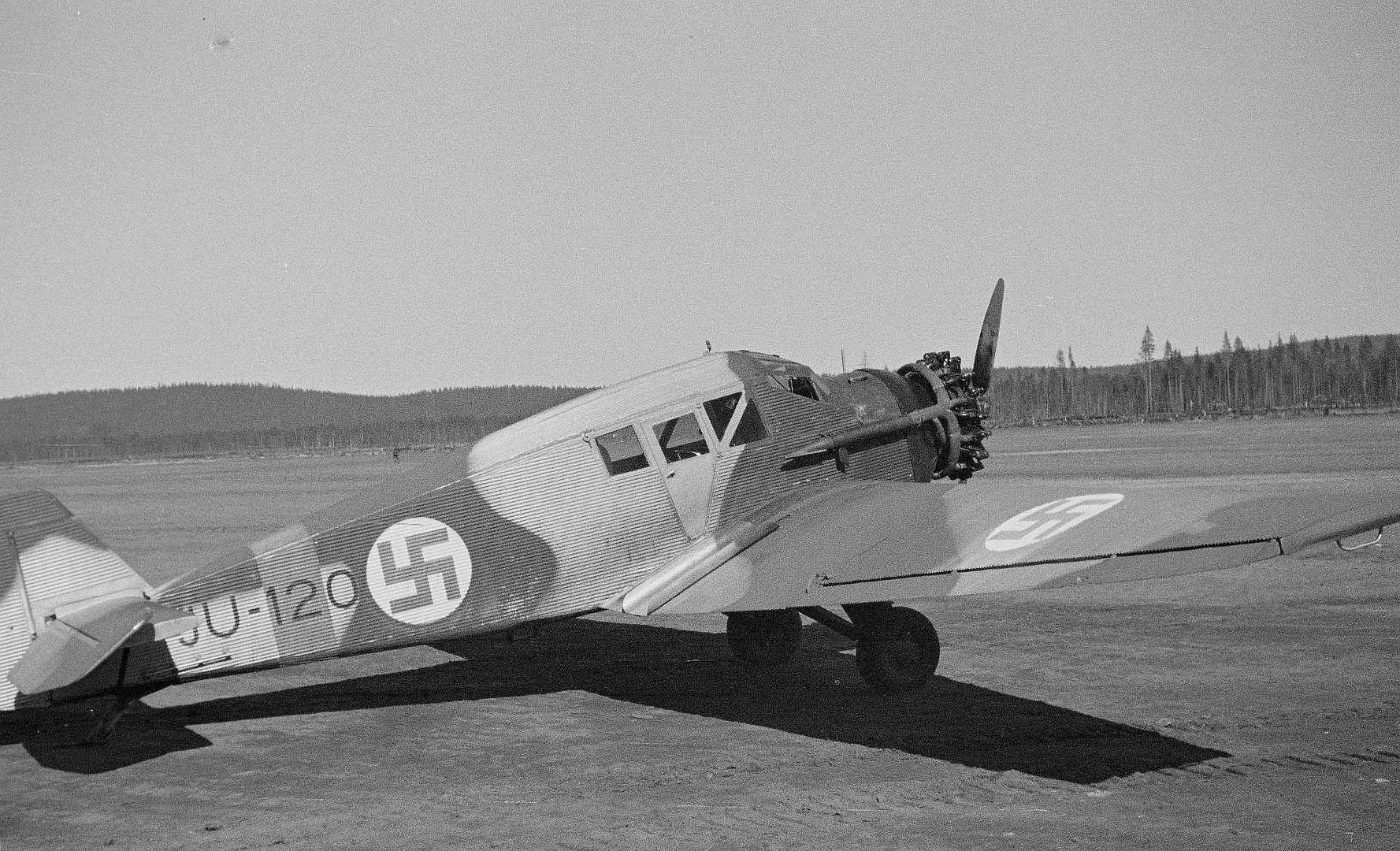

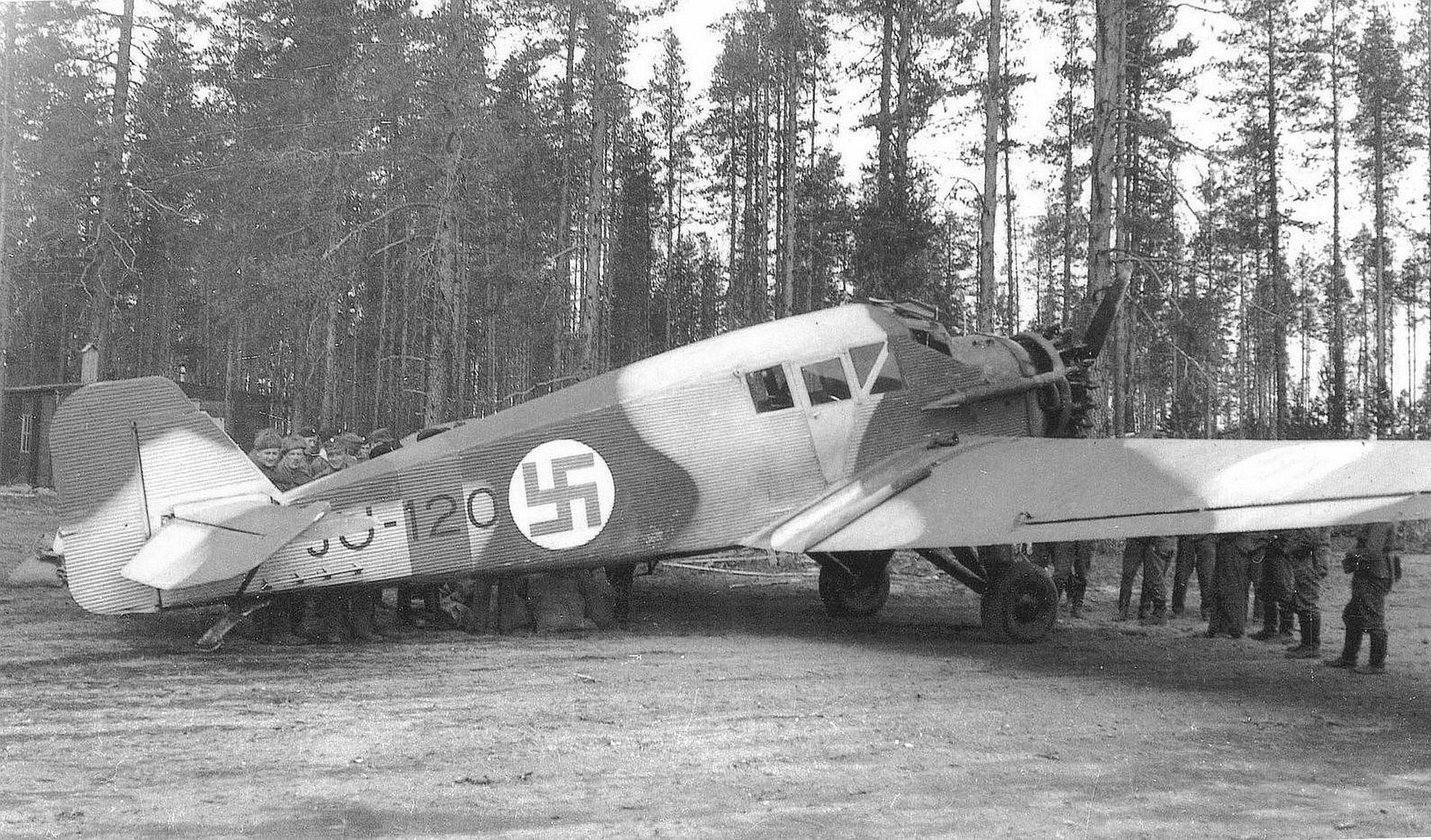

    Junkers F13 Finland 1942
    1
    Specifications (F 13)
    General characteristics
    Crew: two
    Capacity: four passengers or 689 kg (1,519 lb) payload
    Length: 9.59 m (31 ft 6 in)

    F 13fe: 10.50 m (34 ft)

    Wingspan: 14.8 m (48 ft 7 in)

    F 13fe: 17.75 m (58 ft)

    Height: 3.50 m (11 ft 6 in)

    F 13fe: 3.60 m (12 ft)

    Wing area: 34.50 m2 (371.4 sq ft)

    F 13fe: 44 m2 (474 sq ft)

    Empty weight: 951 kg (2,097 lb)

    F 13fe: 1,480 kg (3,263 lb)

    Max takeoff weight: 1,640 kg (3,616 lb)

    F 13fe: 2,318 kg (5,110 lb)

    Powerplant: 1 × Mercedes D.IIIa 6-cyl.water-cooled in-line piston engine, 118 kW (158 hp)

    F 13fe: 1 x 228 kW (306 hp) Junkers L5 6-cyl. water-cooled in-line piston engine
    Performance
    Maximum speed: 173 km/h (107 mph, 93 kn)

    F 13fe: 198 km/h (123 mph)

    Cruise speed: 160 km/h (99 mph, 86 kn)

    F 13fe: 170 km/h (106 mph)

    Range: 1,400 km (870 mi, 760 nmi)
    Service ceiling: 5,000 m (16,000 ft)

    F 13fe: 5,090 m (16,699 ft)

    Rate of climb: 2.40 m/s (472 ft/min)
    Power/mass: 0.0712 kW/kg (0.0443 hp/lb)
    (Text from Wikki)
