  • The Blériot-SPAD S.20 (originally known as the SPAD S.XX) was a French fighter aircraft developed near the end of World War I. Too late to serve in the war, almost 100 of these aircraft equipped the French Air Force in the years immediately following. These agile aircraft were also used successfully for air racing and record-setting.
    Design and development
    The S.XX was a refinement of the S.XVIII and was a two-seat fighter biplane which carried a pilot and tail gunner. The design was conventional but featured an upper wing with a pronounced sweep-back. This was joined to the lower wing by large I-struts. Like its predecessor, the S.XX became known colloquially as the "Herbemont", after its designer. Originally the French government issued an open-ended contract for these aircraft at the rate of 300 per month. However, this was cancelled at the Armistice, before any aircraft had been delivered. The order was later revived to obtain a modern fighter for France's post-war air force, and 95 were purchased. Additionally, the Japanese Mitsubishi company bought three examples, and the government of Bolivia bought one.

    In 1918, a S.XX set the world airspeed record for a two-seat aircraft, with a speed of 230 km/h (143 mph), and in July 1919 Joseph Sadi-Lecointe set an altitude record of 8,900 m (29,200 ft) in one. This was the beginning of a prodigious streak of records set by a series of refined S.20s with increasingly shorter wingspans. Before the year was over, Sadi-Lecointe set two new speed records for the S.20's class: 249 km/h (155 mph) in September, and 252 km/h (157 mph) in October, as well as winning the Prix Henri Deutsch de la Meurthe competition five days earlier.

    1920 saw S.20s used to break records not only in their own class, but the world absolute airspeed record three times over. On February 28, Jean Casale reached 283 km/h (176 mph), but this was soon broken twice by Bernard de Romanet, first on October 9 with a speed of 292 km/h (182 mph), and then on November 4 at 309 km/h (193 mph).[1] The same year, the two S.20bis-5s competed in the Gordon Bennett Cup. One, piloted by Casale, was disqualified, but the other, piloted by de Romanet, was placed second.
    Variants
    S.XX - original military production version (95 built in series)
    S.XX bis - improved military version (2 built) with larger wings and tail. One sold to Mitsubishi
    S.20 bis-1 - racer
    S.20 bis-2 - racer with shortened wingspan
    S.20 bis-3 - racer with further shortened wingspan
    S.20 bis-4 - racer with even further shortened wingspan
    S.20 bis-5 - racer for Gordon Bennett cup (2 built). Radically modified wing design - upper wing changed to gull configuration.
    S.20 bis-6 - racer with shortened cabane struts and custom-built Hispano-Suiza engine

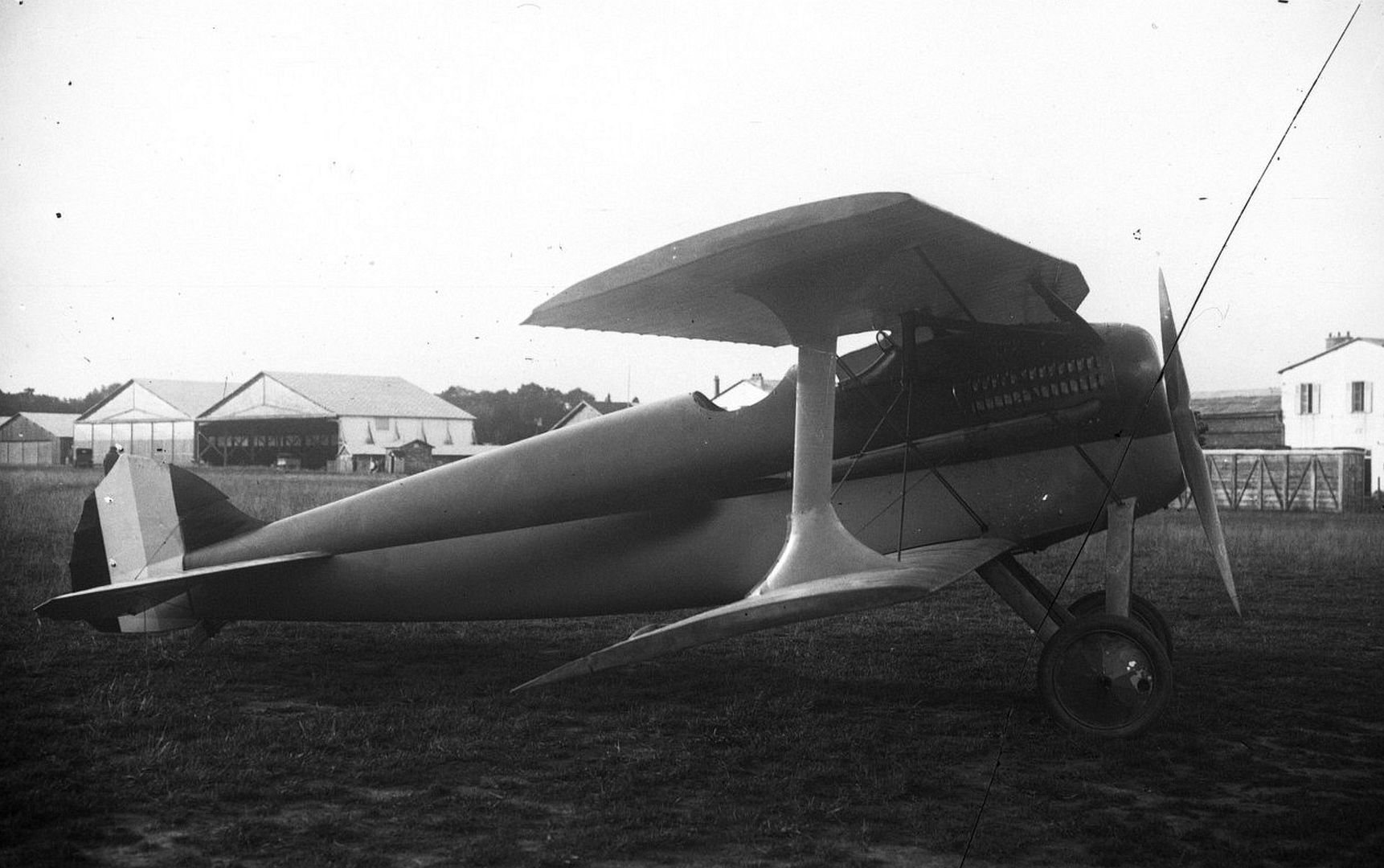

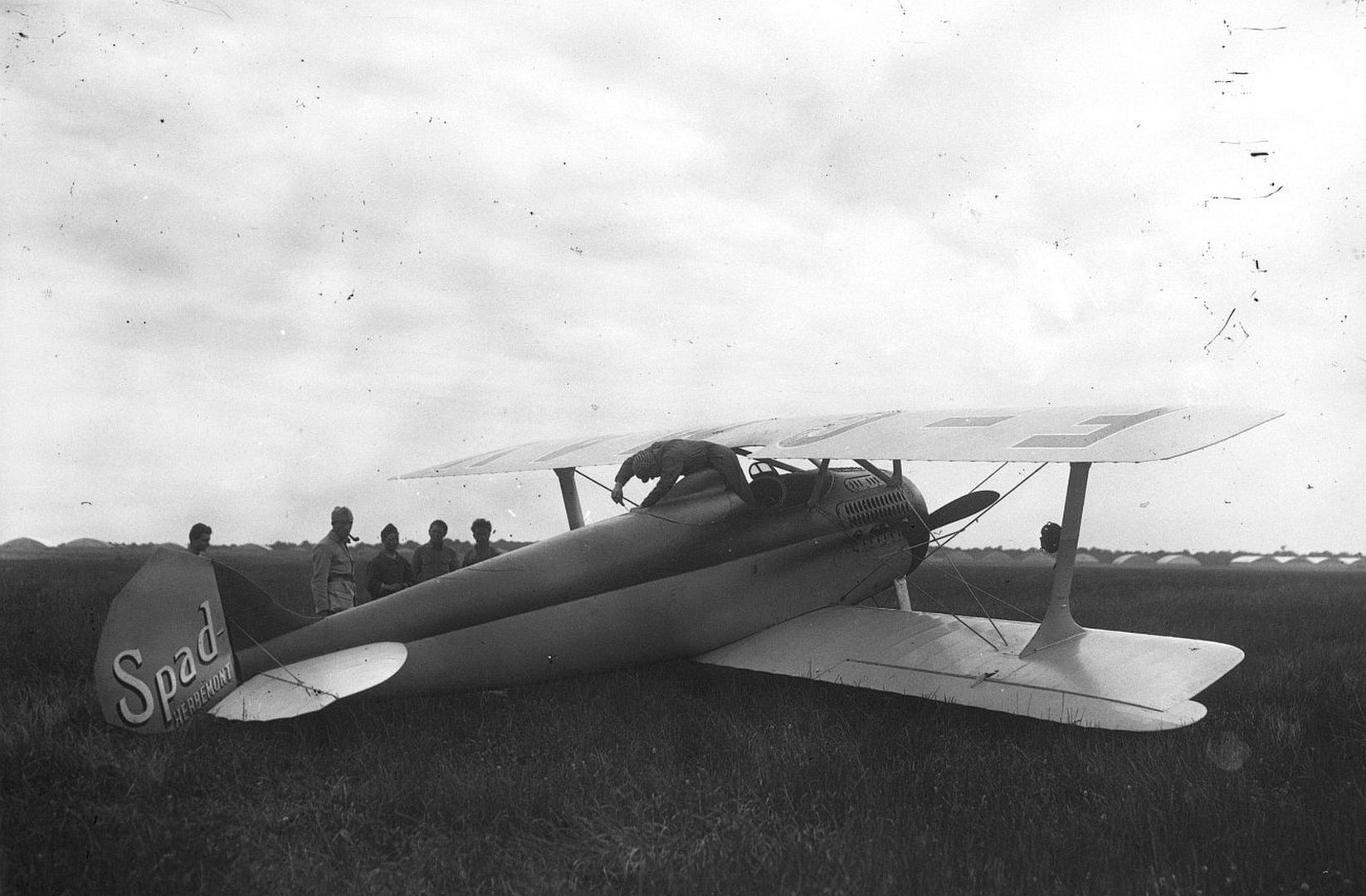

    Herbemont

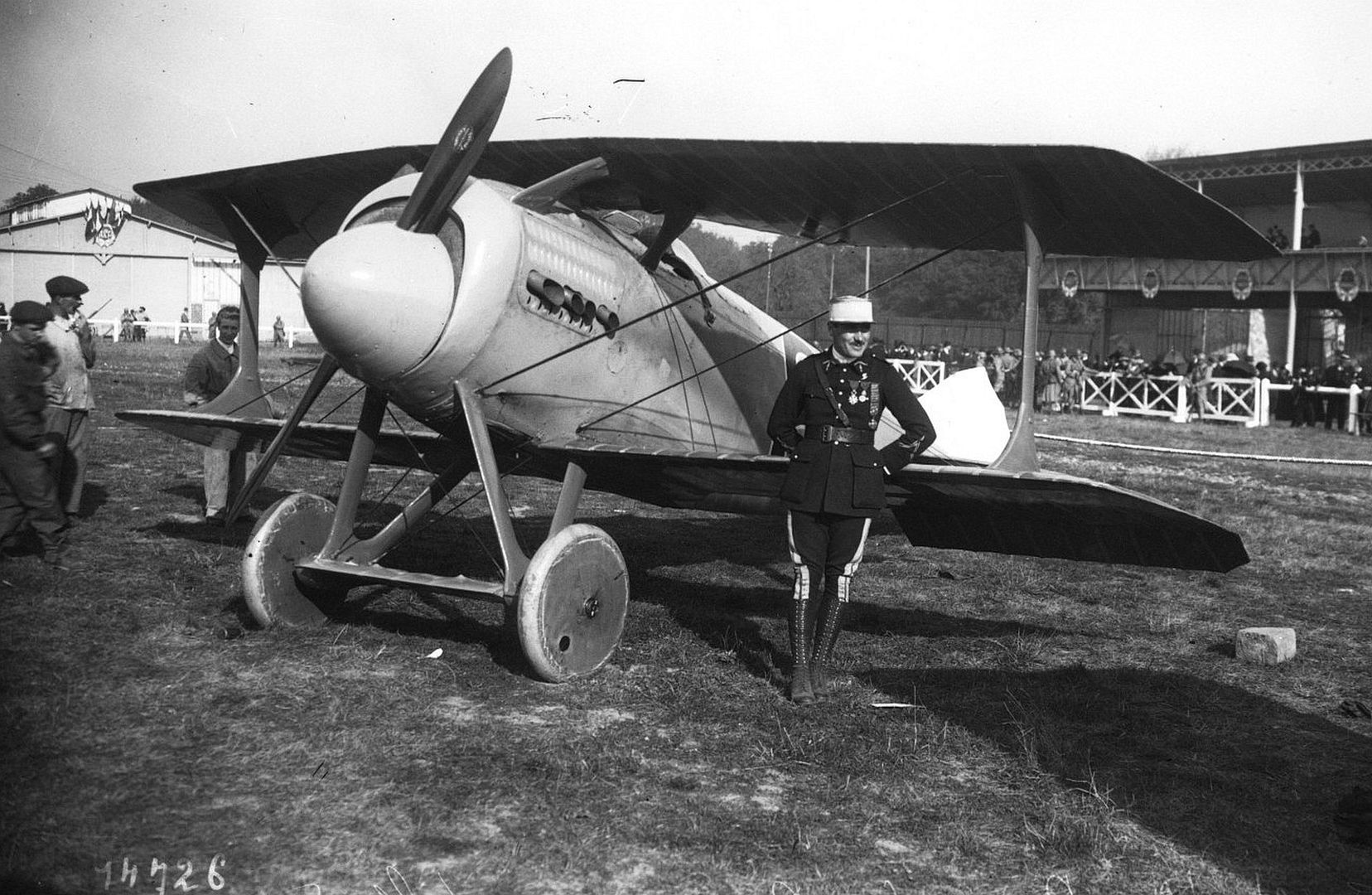

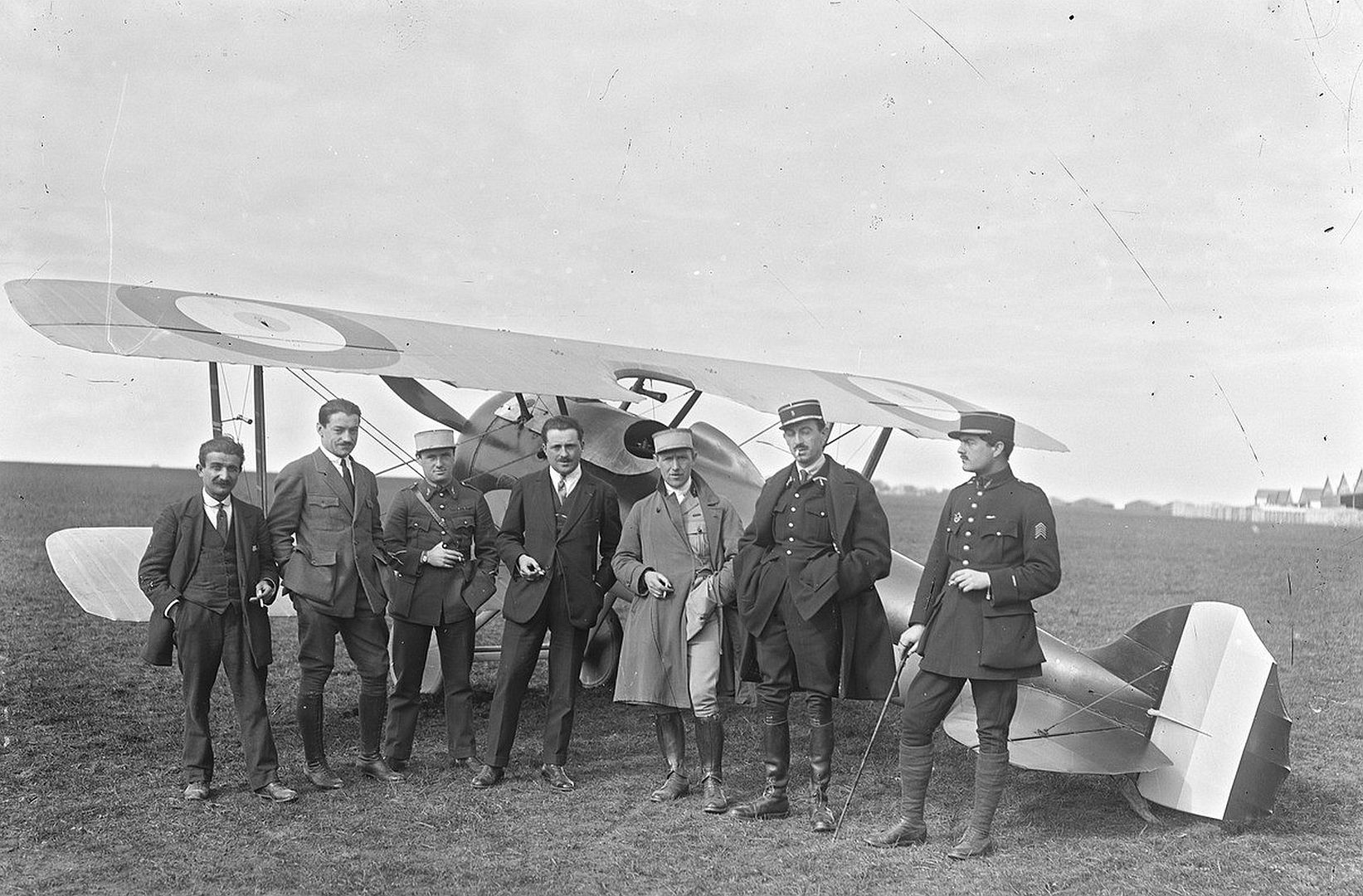

    XX 1919
    Spad XX Voilure R Duite Pour La Coupe Gordon Bennett Pilote Bernard De Romanet 1920
    1

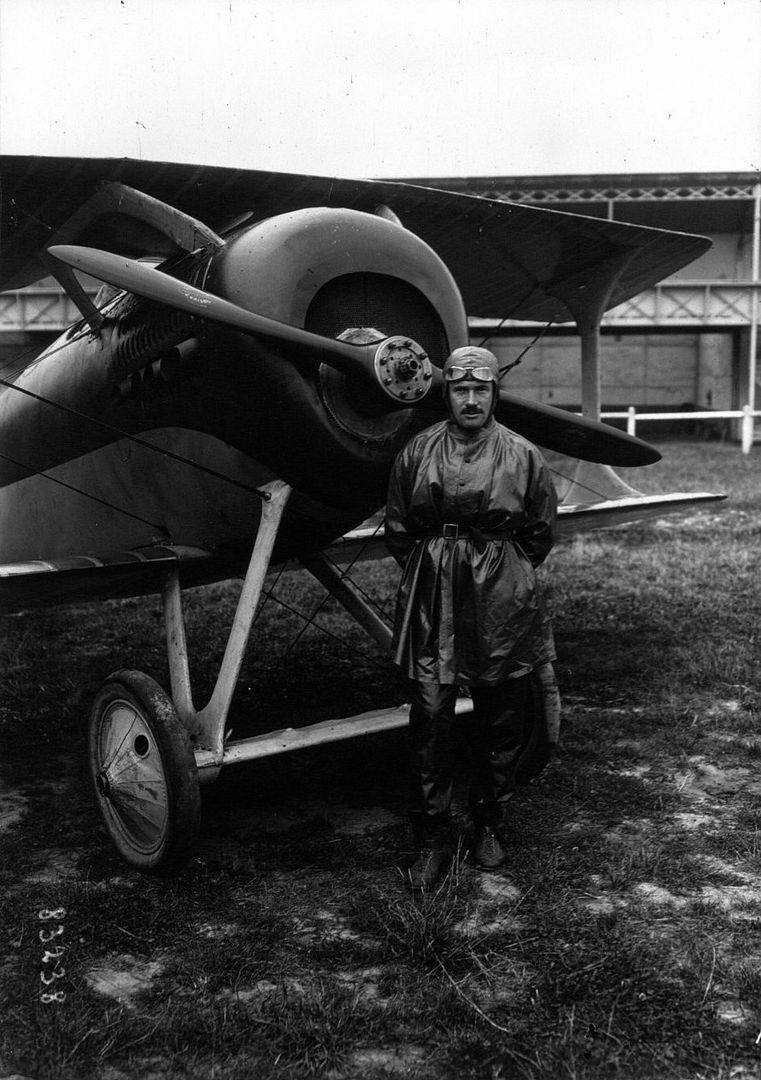

    Spad XX De Romanet Aviateur
    2

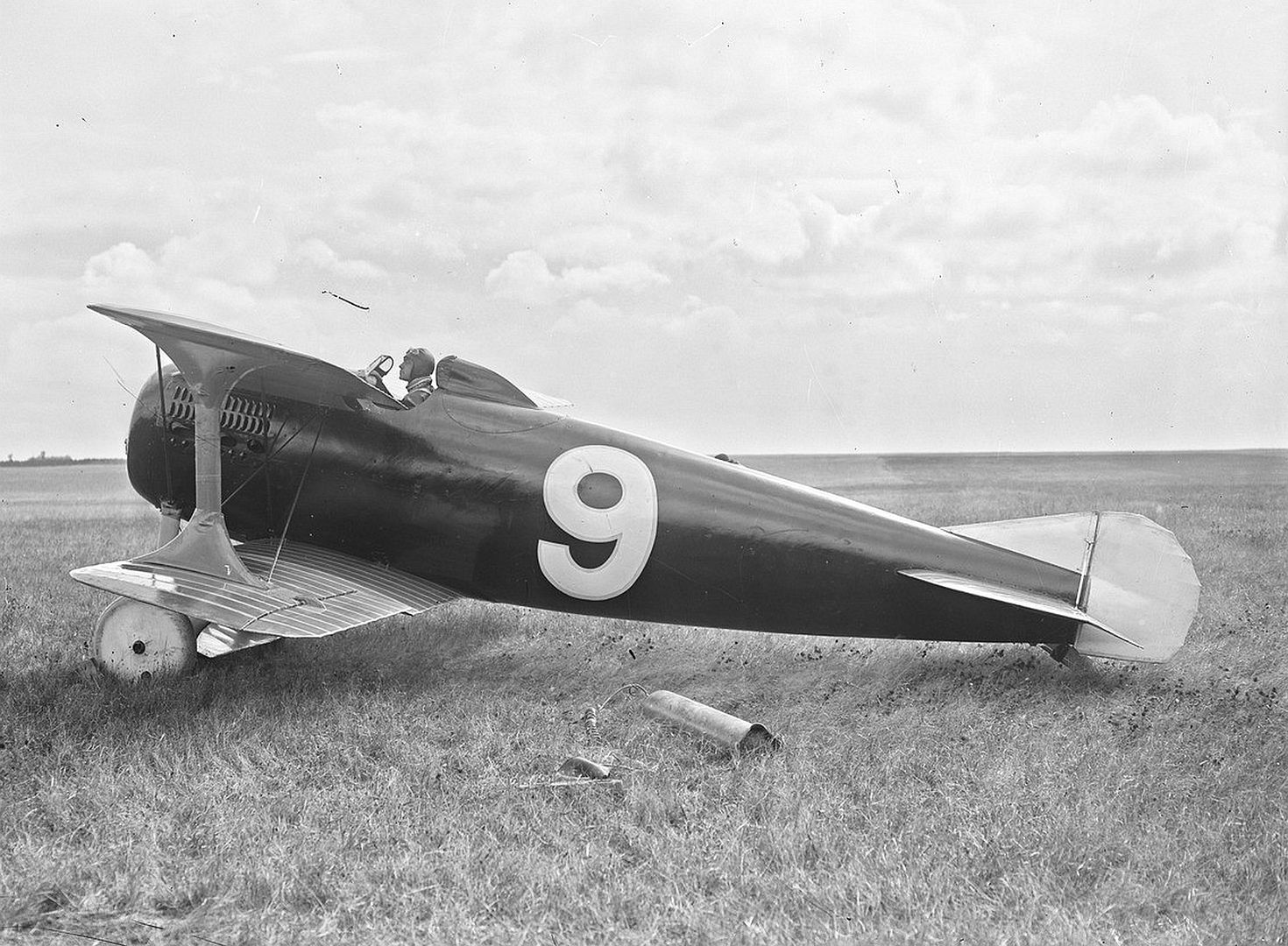

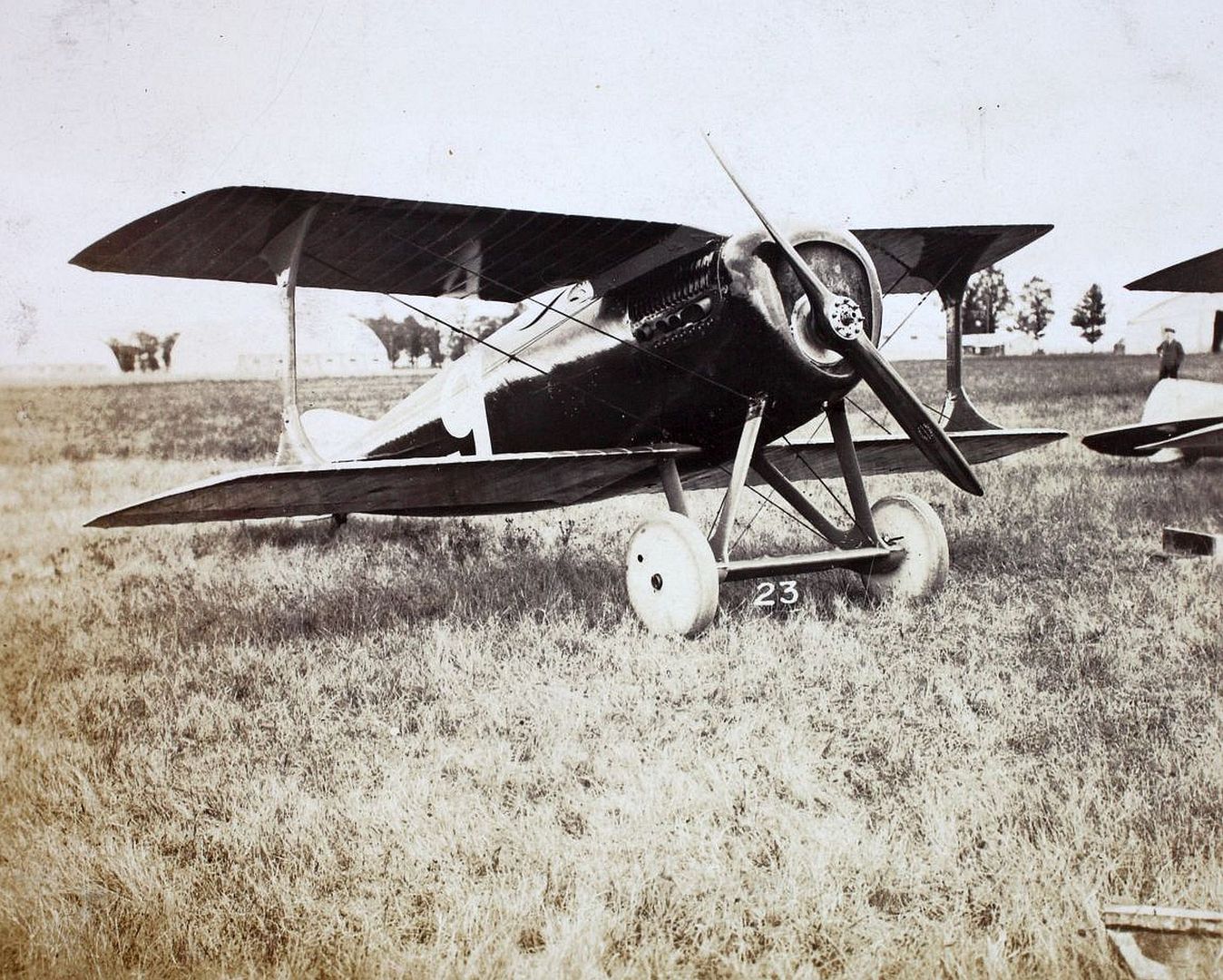

    SPAD 20bis Race Number 9

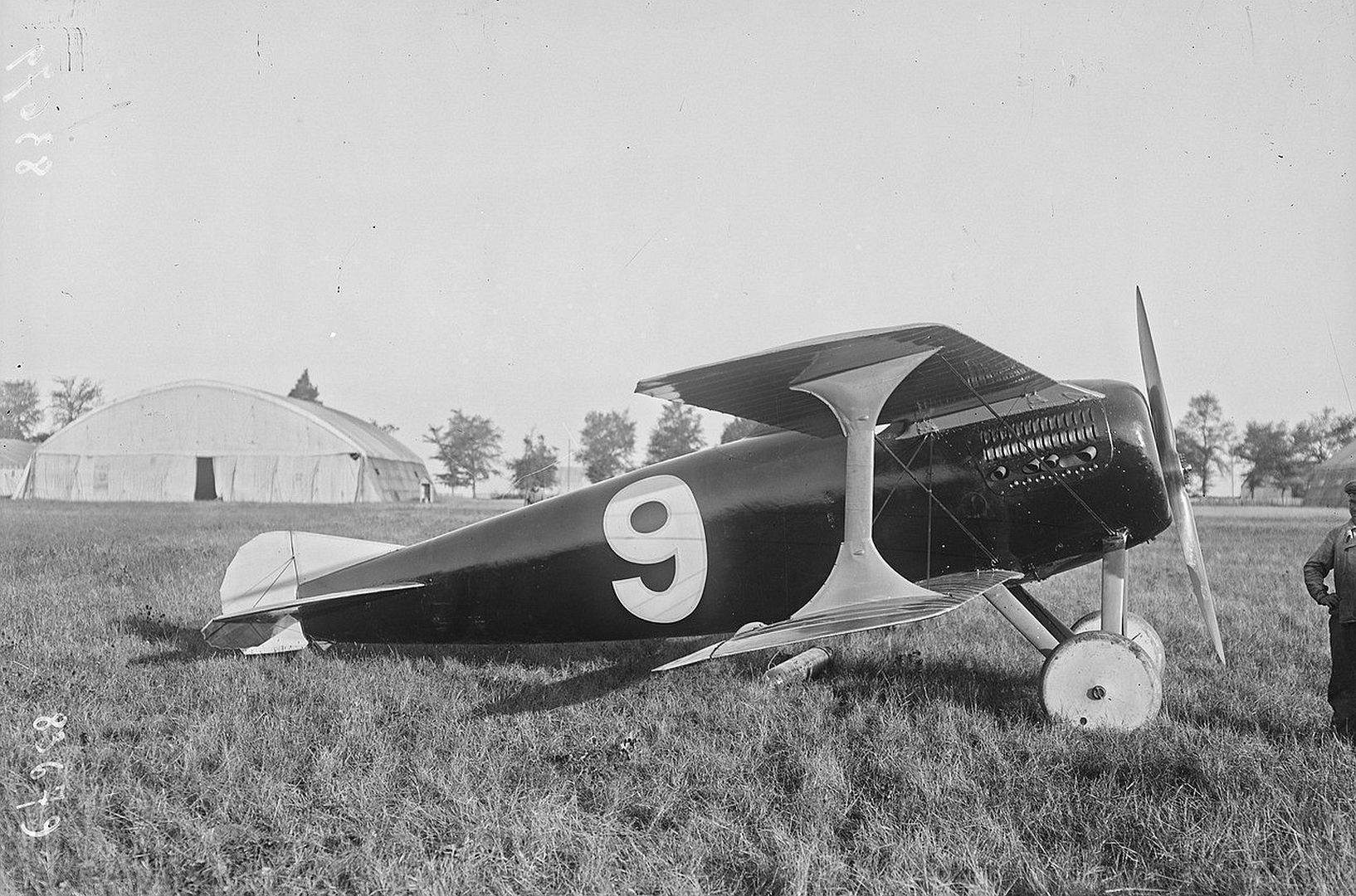

    Gordon Bennet 1920
    1
    2
    3
    XX Casale
    1

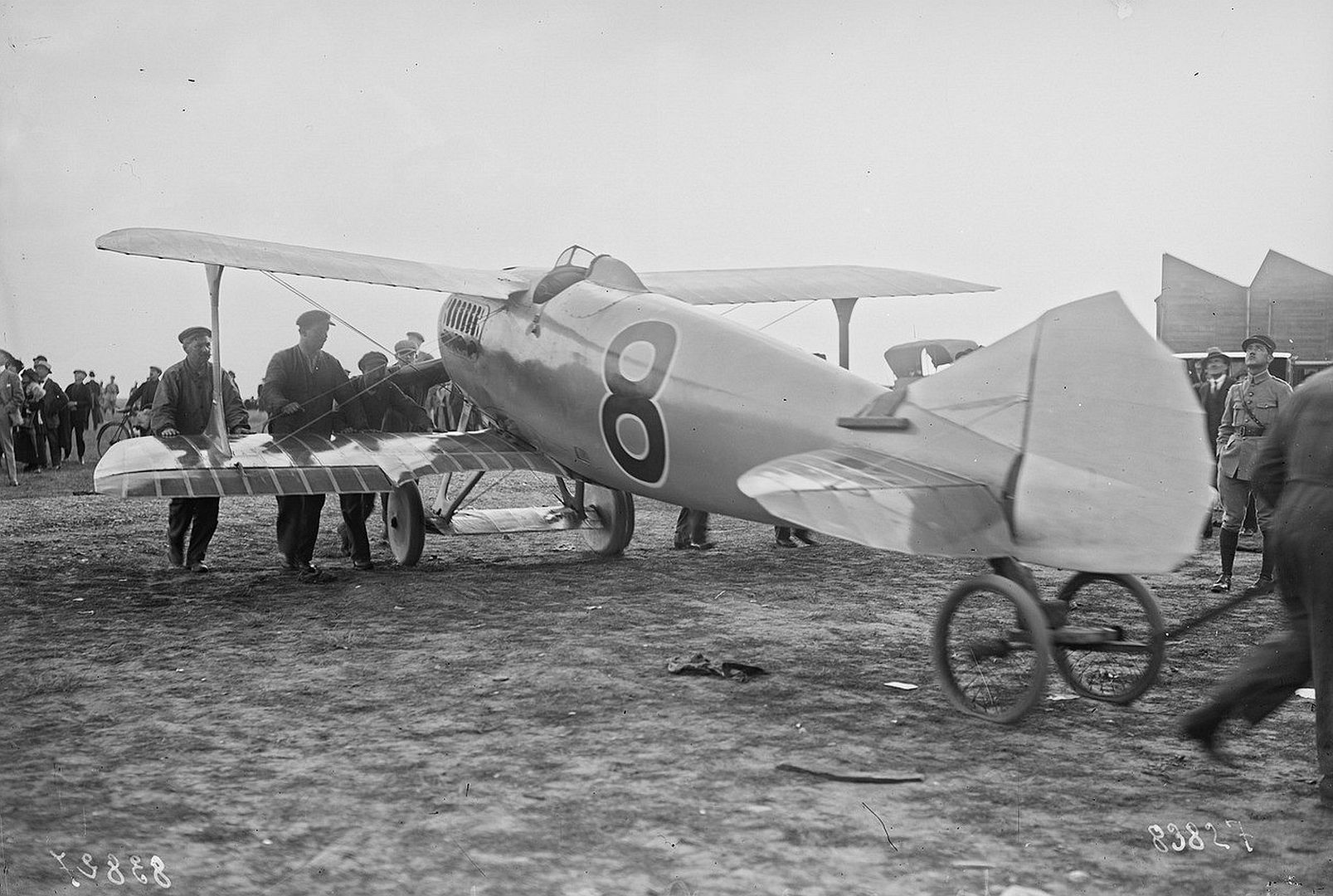

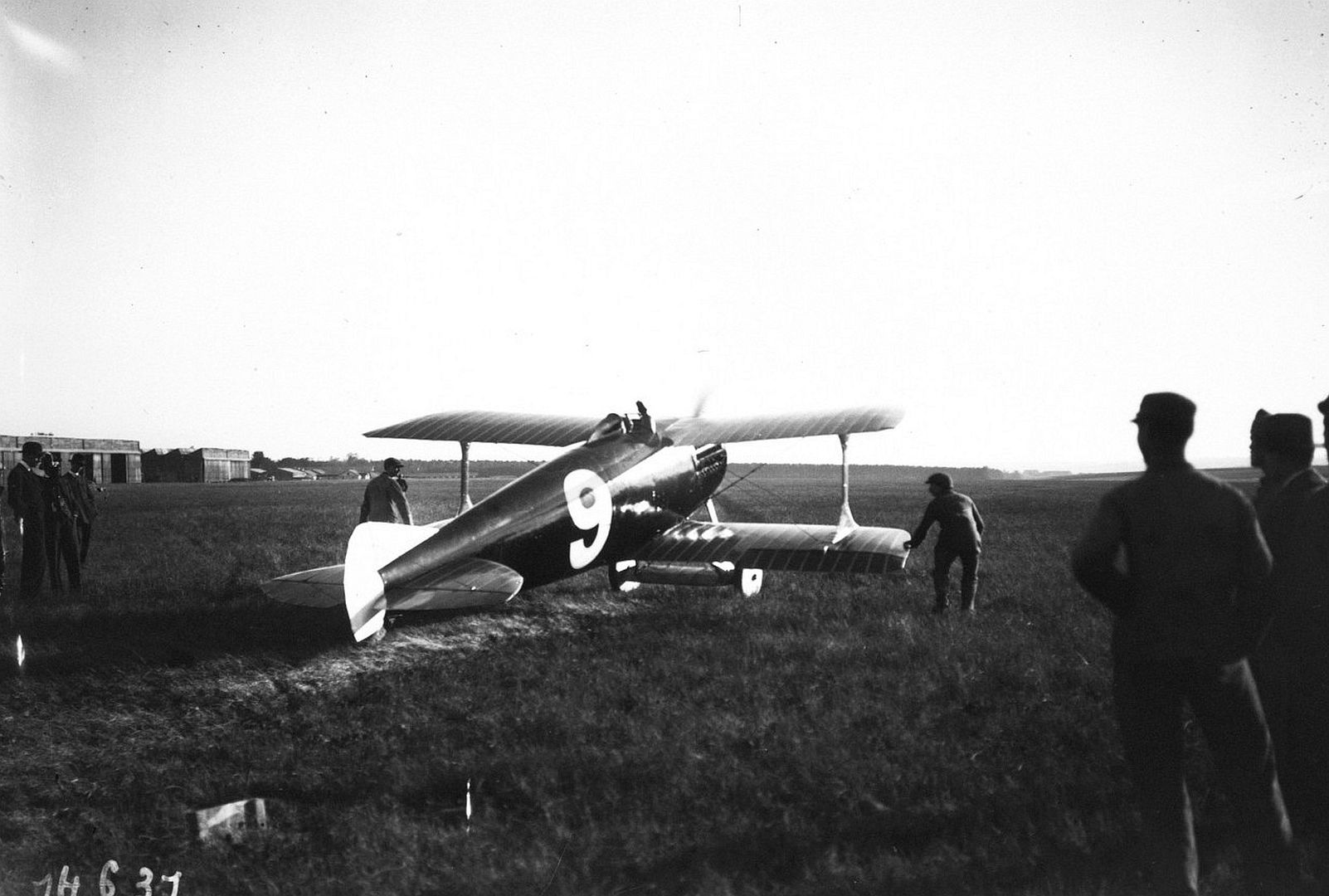

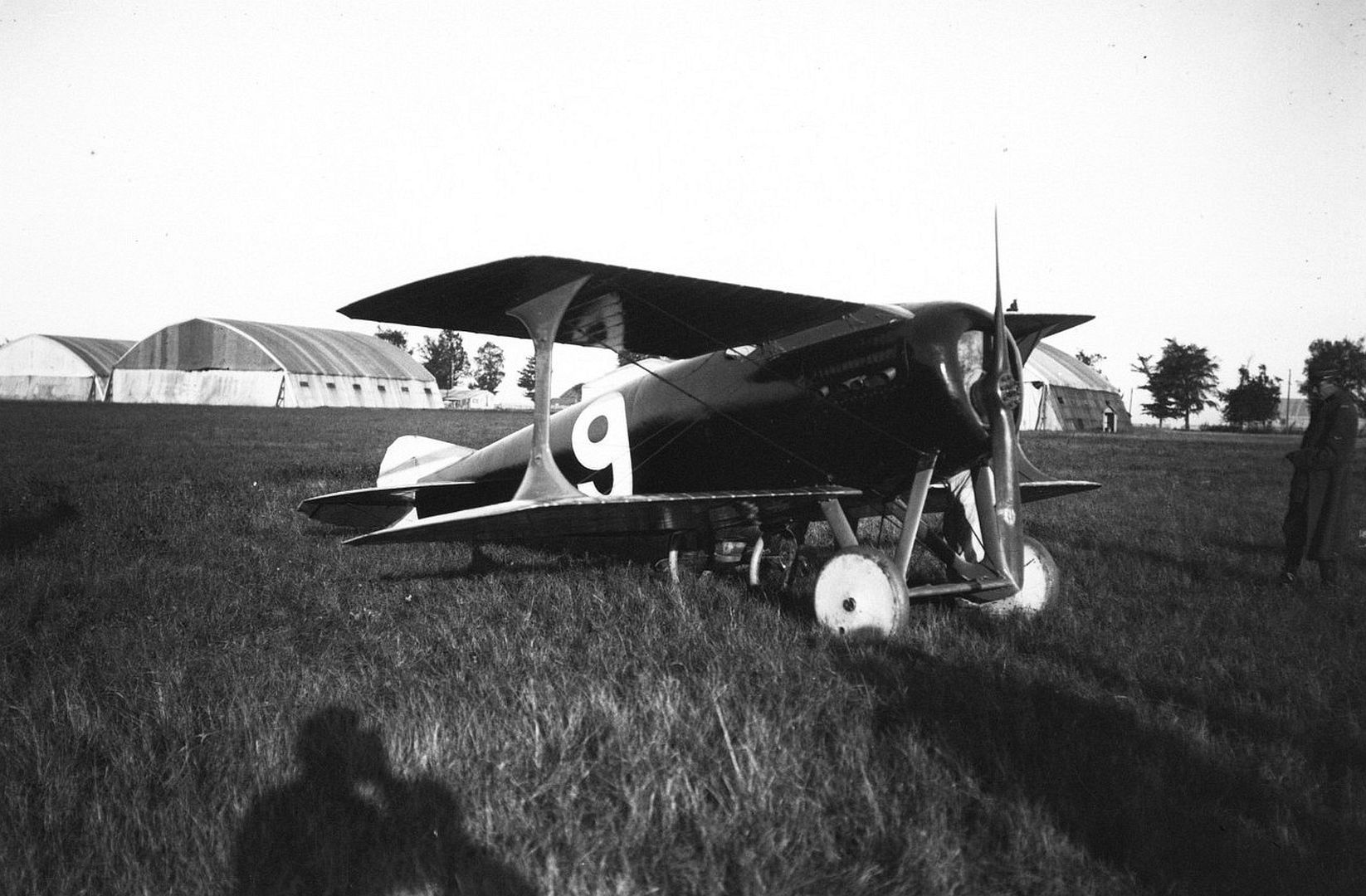

    Spad De Romanet Gordon Bennet 1920

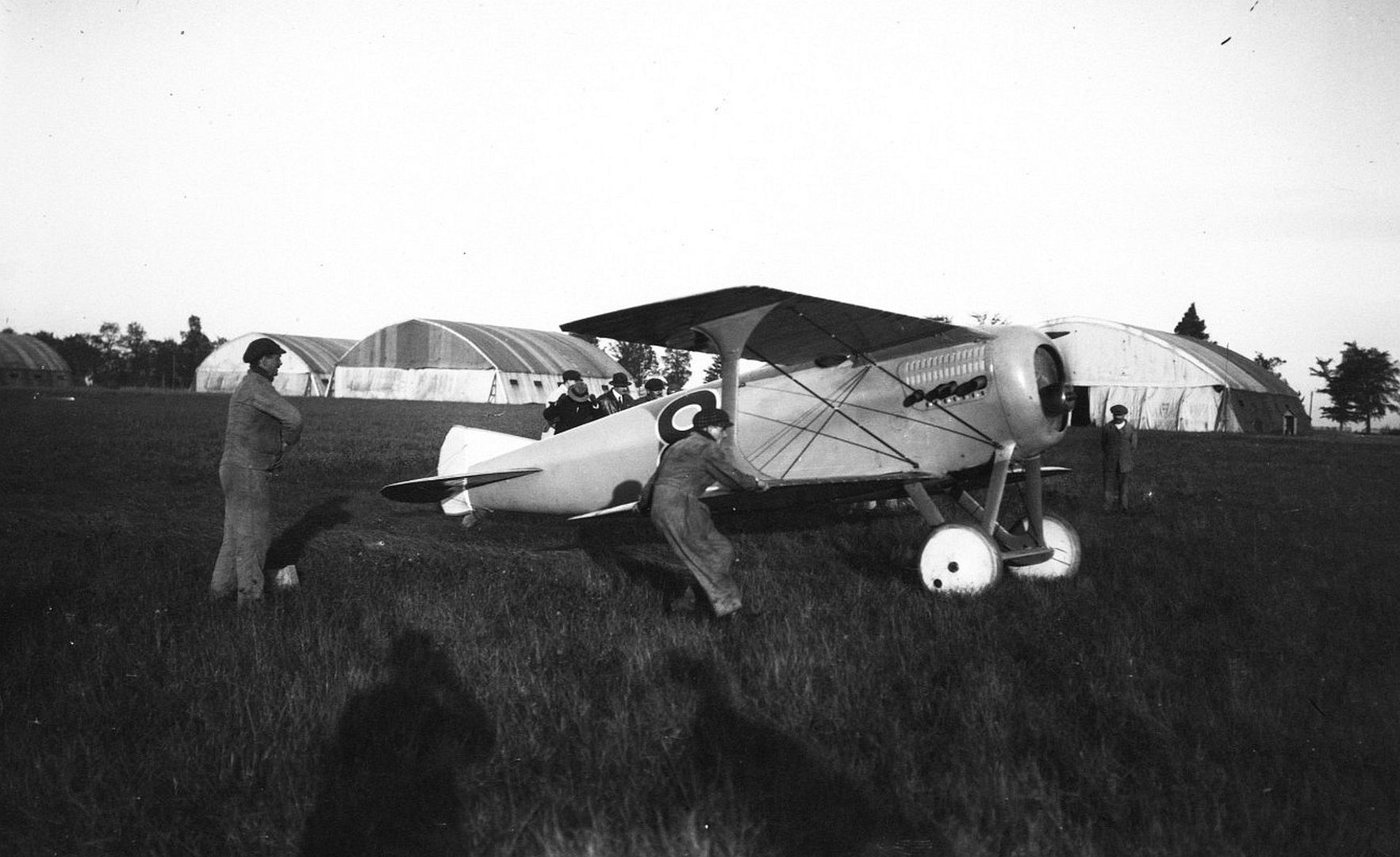

    Herbemont Lieutenant De Romanet
    3
    1

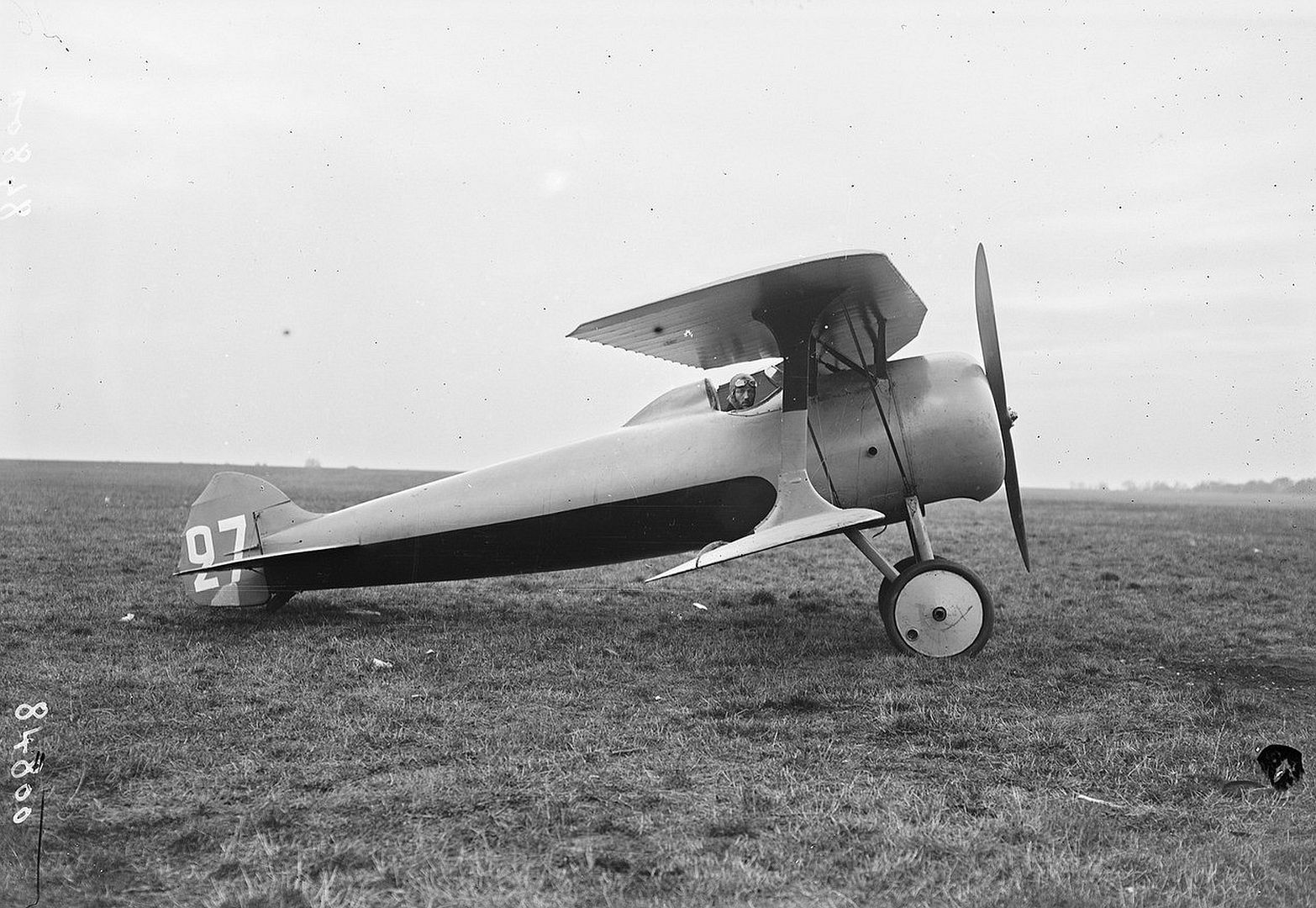

    1920

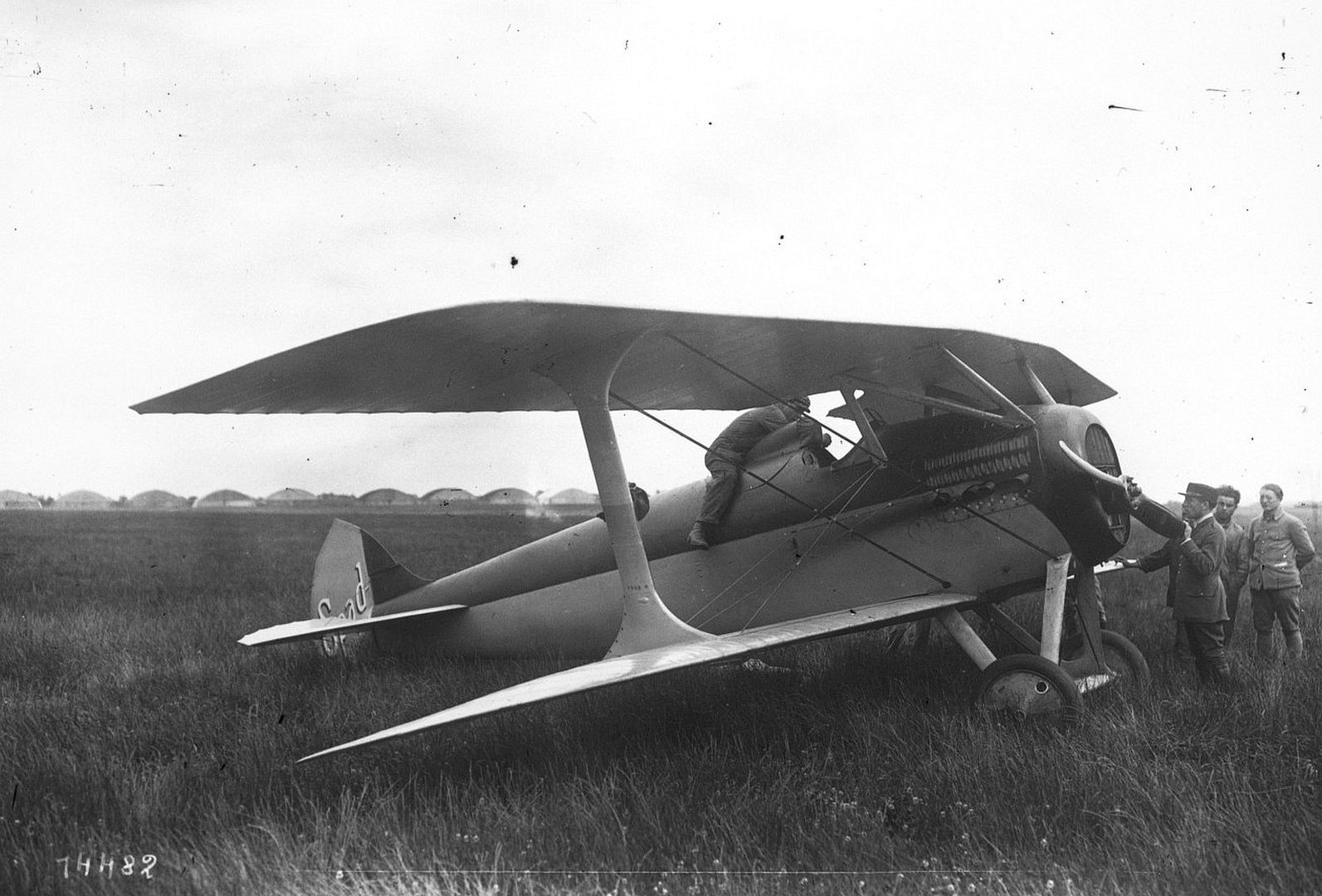

    Spad De Casale July 1st 1920
    XX
    Specifications (S.XX)
    General characteristics
    Crew: two, pilot and gunner
    Length: 7.30 m (23 ft 11 in)
    Wingspan: 9.72 m (31 ft 11 in)
    Height: 2.80 m (9 ft 2 in)
    Wing area: 30.0 m2 (323 sq ft)
    Empty weight: 867 kg (1,911 lb)
    Gross weight: 1,306 kg (2,879 lb)
    Powerplant: 1 × Hispano-Suiza 8Fb inline engine , 224 kW (300 hp)
    Performance
    Maximum speed: 217 km/h (135 mph, 117 kn)
    Range: 400 km (250 mi, 220 nmi)
    Service ceiling: 8,000 m (26,240 ft)
    Rate of climb: 5.6 m/s (1,100 ft/min)
    Armament
    2 × fixed, forward-firing .303 Vickers machine guns
    1 × trainable, rearward-firing .303 Lewis gun
    (Text from Wikki)
